CTS100 CTS Computer To Screen UV Laser Wavelength 400nm-410nm

Name: CTS100 CTS Computer To Screen UV Laser Wavelength 400nm-410nm
Brand: Jiangsu GIS Laser Technologies Inc.,
SKU: CTS100
Availability: InStock

Brand Name:	GIS
Model Number:	CTS100
MOQ:	1 set
Price:	negotiable price
Delivery Time:	20 work days

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

ISO 9001

Name:

Computer To Screen

Application:

Textile

Resolution:

1270dpi/2540dpi

Max Screen:

900x1000

Laster Type:

UV Laser, Wavelength 405±5nm

Emulsion Thickness:

3-350μm

Machine Dimension:

1710mm*1470mm*1500mm (length*width*height)

Weight:

1200kg

Bearing Weight Point:

Capacity:

120S/m2 (according To The Characteristic Of Emulsion)

Packaging Details:

wooden case packing

Supply Ability:

30set per month

Highlight:

CTS Computer To Screen 400nm

20W CTS Computer To Screen

UV Laser CTS Machine

Product Description

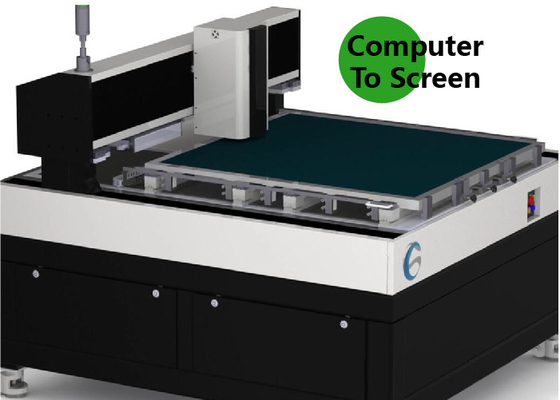

Computer to screen (CTS) / Pre-Press No Film Exposure Screen Laser Direct Plate Making Machine

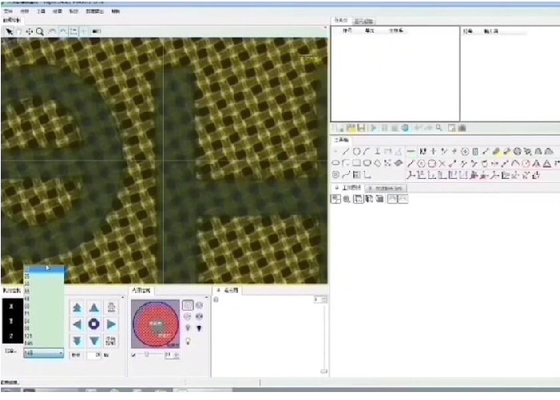

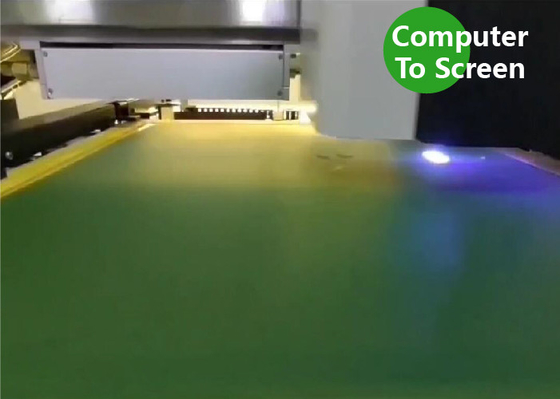

CTS100 equipment is the latest product of CTS (computer to screen) series developed by our company. It is a laser direct imaging equipment based on a digital micro mirror array (DMD) device; In the pattern forming process, this machine will convert graphs into machine data and transmit to the digital micro mirror device (DMD) by the computer, then the graph will be direct projected to the photosensitive material to complete exposure.

The maximum screen frame size can reach 900x1000.

Specification / Model	CTS100
Max screen size ( mm )	900x1000
Min screen size ( mm )	400x400
Max exposure size ( mm )	800x900
Screen frame thickness (bespoke service is available)	25-45mm
Imaging System	DMD DLP Technology
Emulsion thickness (EOM)	Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm- 220μm
Exposure time	120-240s/ ㎡, #350 yellow mesh
Resolution	1270
Raster	133LPI
Focus system	Fixed focusing
File format	1_bit tiff etc.
Laser type	UV laser, wavelength 405±5nm
Laser power	20W
Equipment size (mm)	1550x1330x1460
Equipment net weight	1100KG
Conditions	Yellow light room with cleanliness Class 10000, temperature 22±2°C, 40-70% relative humidity (No condensation)
Power	Single phase 220v, 50/60HZ, 4KW, Compressed air: 0.6mpa

High Precision:
Resolutions 1270dpi or 2540dpi, with raster 133lpi/dpi (halftones printing)

High Efficiency:
3 minutes to finish the exposure on screen size 1000mm*1000mm. Stencil making efficieny has been greatly improved due to a lot of time is saved by the accurate exposure alignment and lobor reduction.

Low Cost:
Elimination of film positives. Litho film are becoming increasingly expensive and the number of suppliers on the maket is rapidly decreasing. 1 procedure of CTS digital screen making to replace 5 procedures of from the conventional process
