UV Laser CTS100 CTS Computer To Screen 1270dpi 2540dpi Resolution

Product Details

Place of Origin: Jiangsu, China

Brand Name: GIS

Certification: ISO 9001

Model Number: CTS100

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiable price

Packaging Details: wooden case packing

Delivery Time: 20 work days

Supply Ability: 30set per month

Get Best Price
Product Details
Highlight:

UV Laser Computer To Screen

,

1270dpi Computer To Screen

,

CTS100 Computer Screen Printing Machine

Name:
Computer To Screen
Application:
Textile
Resolution:
1270dpi/2540dpi
Max Screen:
900x1000
Laster Type:
UV Laser, Wavelength 405±5nm
Emulsion Thickness:
3-350μm
Machine Dimension:
1710mm*1470mm*1500mm (length*width*height)
Weight:
1200kg
Bearing Weight Point:
4
Capacity:
120S/m2 (according To The Characteristic Of Emulsion)
Imaging System:
DMD Exposure System
Exposure Time:
120-240s/ ㎡, #350 Yellow Mesh
Name:
Computer To Screen
Application:
Textile
Resolution:
1270dpi/2540dpi
Max Screen:
900x1000
Laster Type:
UV Laser, Wavelength 405±5nm
Emulsion Thickness:
3-350μm
Machine Dimension:
1710mm*1470mm*1500mm (length*width*height)
Weight:
1200kg
Bearing Weight Point:
4
Capacity:
120S/m2 (according To The Characteristic Of Emulsion)
Imaging System:
DMD Exposure System
Exposure Time:
120-240s/ ㎡, #350 Yellow Mesh
Product Description

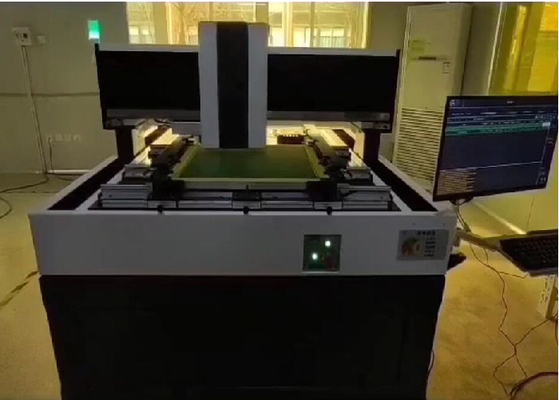

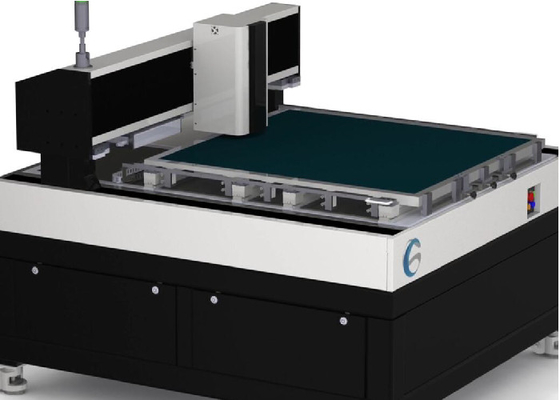

Computer to screen (CTS) / Pre-Press No Film Exposure Screen Laser Direct Plate Making Machine Textile



The CTS laser direct imaging machine adpots TI DMD digital imaging technology to form a clear and sharp
direct dot image on the screen printing plate through laser projection. In this way, the digital pattern in the
computer can be imaged on the screen. This system hasbecome the image exposure process before screenprinting.

  1. HIWIN high precision guide rail,linear electric motor Renishaw gratng ruler;
  2. DMD exposure system;
  3. Up to 120 line;
  4. Image 1270dpi;
  5. Integrated high strength steel structure

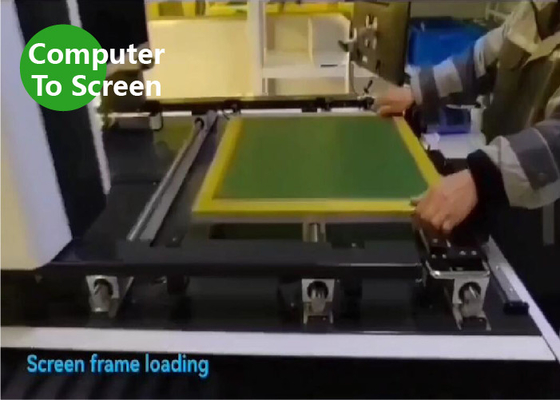

The maximum screen frame size can reach 900x1000.



  Specification / Model

  CTS100
  Max screen size ( mm )   900x1000
  Min screen size ( mm )   400x400

  Max exposure size ( mm )

  800x900
  Screen frame thickness
  (bespoke service is available)
  25-45mm
  Imaging System   DMD DLP Technology
  Emulsion thickness (EOM)   Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    220μm
  Exposure time   120-240s/ ㎡, #350 yellow mesh
  Resolution   1270
  Raster   133LPI
  Focus system   Fixed focusing
  File format   1_bit tiff etc.
  Laser type   UV laser, wavelength 405±5nm
  Laser power   20W
  Equipment size (mm)   1550x1330x1460
  Equipment net weight   1100KG
  Conditions   Yellow light room with cleanliness Class 10000, temperature 22±2°C,
  40-70% relative humidity (No condensation)
  Power   Single phase 220v, 50/60HZ, 4KW, Compressed air: 0.6mpa

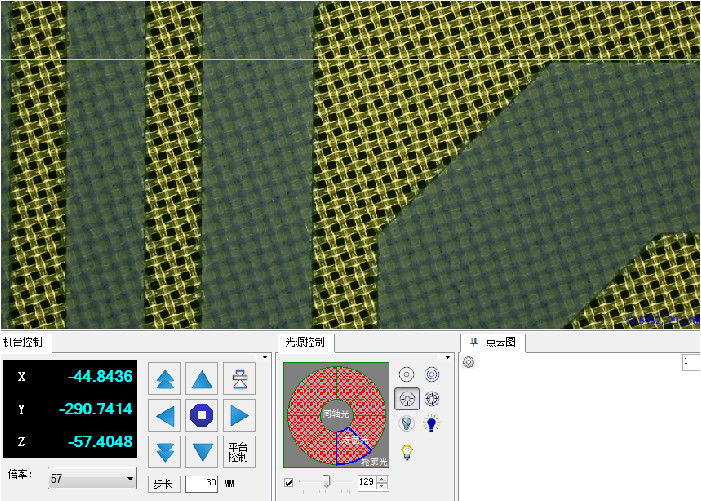

High Precision:
Resolutions 1270dpi or 2540dpi, with raster 133lpi/dpi (halftones printing)

High Efficiency:
3 minutes to finish the exposure on screen size 1000mm*1000mm. Stencil making efficieny has been greatly improved due to a lot of time is saved by the accurate exposure alignment and lobor reduction.



Low Cost:
Elimination of film positives. Litho film are becoming increasingly expensive and the number of suppliers on the maket is rapidly decreasing. 1 procedure of CTS digital screen making to replace 5 procedures of from the conventional process
