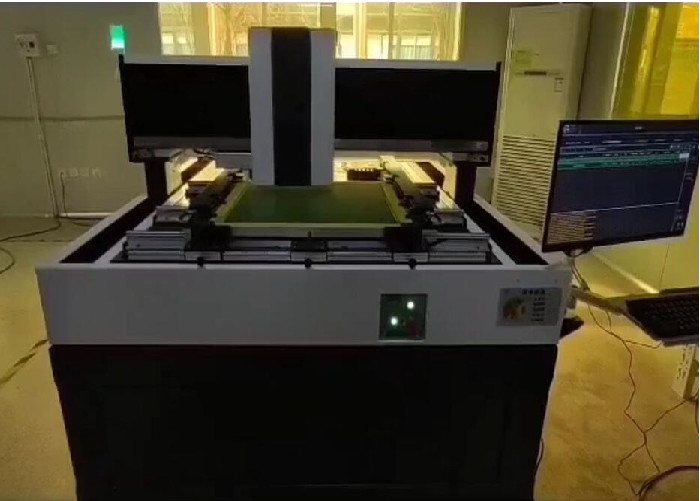

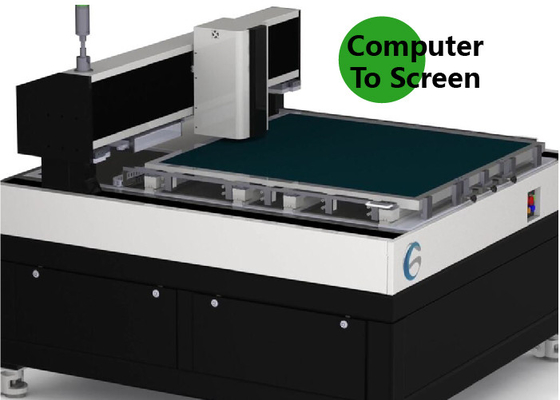

CTS100 CTS Computer To Screen UV Laser 400nm-410nm Textile Clothing Printing

CTS100 CTS Computer To Screen UV Laser 400nm-410nm Textile Clothing Printing
CTS100 CTS Computer To Screen UV Laser 400nm-410nm Textile Clothing Printing
CTS100 CTS Computer To Screen UV Laser 400nm-410nm Textile Clothing Printing CTS100 CTS Computer To Screen UV Laser 400nm-410nm Textile Clothing Printing CTS100 CTS Computer To Screen UV Laser 400nm-410nm Textile Clothing Printing CTS100 CTS Computer To Screen UV Laser 400nm-410nm Textile Clothing Printing CTS100 CTS Computer To Screen UV Laser 400nm-410nm Textile Clothing Printing

Large Image :  CTS100 CTS Computer To Screen UV Laser 400nm-410nm Textile Clothing Printing

Product Details:
Place of Origin: Jiangsu, China
Brand Name: GIS
Certification: ISO 9001
Model Number: CTS100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable price
Packaging Details: wooden case packing
Delivery Time: 20 work days
Supply Ability: 30set per month

CTS100 CTS Computer To Screen UV Laser 400nm-410nm Textile Clothing Printing

Description
Name: Computer To Screen Application: Textile
Resolution: 1270dpi/2540dpi Max Screen: 900x1000
Laster Type: UV Laser, Wavelength 405±5nm Emulsion Thickness: 3-350μm
Machine Dimension: 1710mm*1470mm*1500mm (length*width*height) Weight: 1200kg
Bearing Weight Point: 4 Capacity: 120S/m2 (according To The Characteristic Of Emulsion)
Imaging System: DMD Exposure System Exposure Time: 120-240s/ ㎡, #350 Yellow Mesh
Highlight:

CTS100 Computer To Screen

,

400nm CTS Computer To Screen

,

Textile Clothing CTS Computer To Screen

Computer to screen (CTS) / Pre-Press No Film Exposure Screen Laser Direct Plate Making Machine Textile



CTS Process

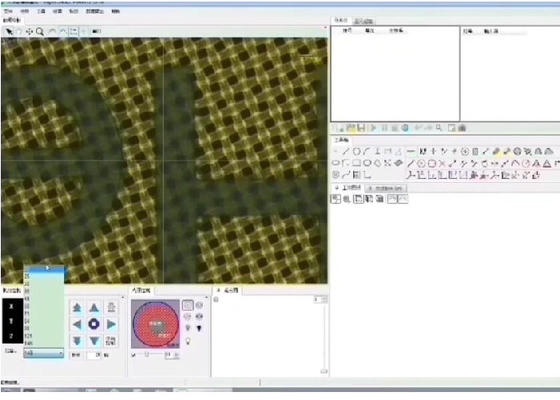

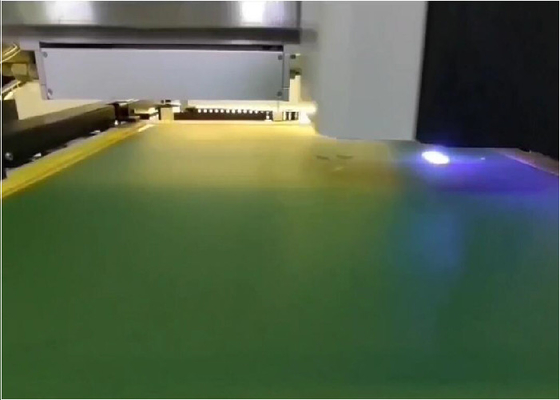

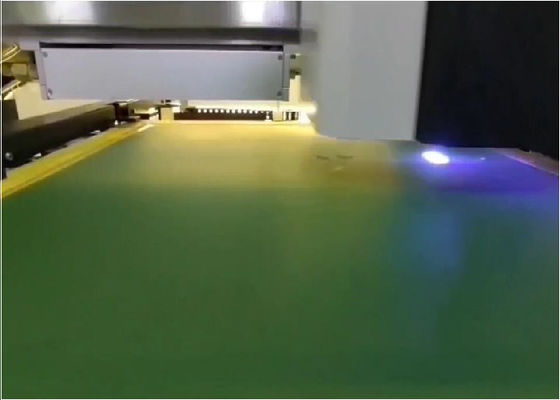

Compatible Processes with the Conventional Process.Data files can be directly read by the CTS and convented to images. The images will preform exposure imaging on screen by laser heads projection.



Advantages

  1. According to customer requirements, CTS machine can be configured with suitable lens 1.95X (higher accuracy), 2.052X.
  2. GIS develops our own the 405nm coupled laser and laser imaging system to increase laser utilization rate from 30% to 50%.
  3. CTS machine can present the minimum of 50 μm line width and 5% dots on the screen.
  4. CTS machine adopts HIWIN SP class guide rail, linear motor, Renishaw grating ruler, marble bed body to ensure the stability of our equipment.
  5. Our sales and service teams are all over the world. With the support of top technicians, we are committed to solving problems and malfunction in the sales process. We maximize the value of the equipments used.



  1. HIWIN high precision guide rail,linear electric motor Renishaw gratng ruler;
  2. DMD exposure system;
  3. Up to 120 line;
  4. Image 1270dpi;
  5. Integrated high strength steel structure



The maximum screen frame size can reach 900x1000.



  Specification / Model

  CTS100
  Max screen size ( mm )   900x1000
  Min screen size ( mm )   400x400

  Max exposure size ( mm )

  800x900
  Screen frame thickness
  (bespoke service is available)
  25-45mm
  Imaging System   DMD DLP Technology
  Emulsion thickness (EOM)   Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    220μm
  Exposure time   120-240s/ ㎡, #350 yellow mesh
  Resolution   1270
  Raster   133LPI
  Focus system   Fixed focusing
  File format   1_bit tiff etc.
  Laser type   UV laser, wavelength 405±5nm
  Laser power   20W
  Equipment size (mm)   1550x1330x1460
  Equipment net weight   1100KG
  Conditions   Yellow light room with cleanliness Class 10000, temperature 22±2°C,
  40-70% relative humidity (No condensation)
  Power   Single phase 220v, 50/60HZ, 4KW, Compressed air: 0.6mpa



High Precision:
Resolutions 1270dpi or 2540dpi, with raster 133lpi/dpi (halftones printing)

High Efficiency:
3 minutes to finish the exposure on screen size 1000mm*1000mm. Stencil making efficieny has been greatly improved due to a lot of time is saved by the accurate exposure alignment and lobor reduction.



Low Cost:
Elimination of film positives. Litho film are becoming increasingly expensive and the number of suppliers on the maket is rapidly decreasing. 1 procedure of CTS digital screen making to replace 5 procedures of from the conventional process
