CTS Computer To Screen
Created with Pixso. Textile Clothing Printing CTS Computer To Screen UV Laser 400nm-410nm 120S/m2

Textile Clothing Printing CTS Computer To Screen UV Laser 400nm-410nm 120S/m2

Brand Name: GIS
Model Number: CTS100
MOQ: 1 set
Price: negotiable price
Delivery Time: 20 work days
Detail Information
Place of Origin:
Jiangsu, China
Certification:
ISO 9001
Name:
Computer To Screen
Application:
Textile
Resolution:
1270dpi/2540dpi
Max Screen:
900x1000
Laster Type:
UV Laser, Wavelength 405±5nm
Emulsion Thickness:
3-350μm
Machine Dimension:
1710mm*1470mm*1500mm (length*width*height)
Weight:
1200kg
Bearing Weight Point:
4
Capacity:
120S/m2 (according To The Characteristic Of Emulsion)
Imaging System:
DMD Exposure System
Exposure Time:
120-240s/ ㎡, #350 Yellow Mesh
Air:
>0.4Mpa
File Format:
1 Bit TIFF
Packaging Details:
wooden case packing
Supply Ability:
30set per month
Highlight:

Textile Clothing CTS Computer To Screen

,

400nm Computer To Screen

,

120S/m2 CTS Computer To Screen

Product Description

CTS Computer To Screen UV Laser 400nm-410nm Textile Clothing Printing Exposure Speed 120 Seconds Per Squar

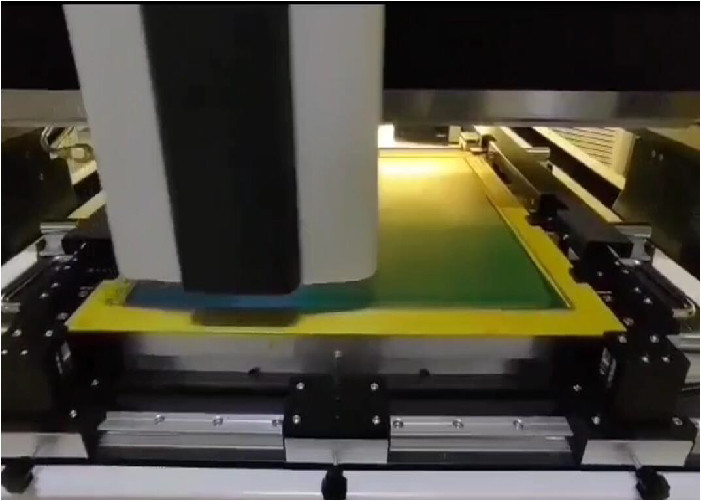

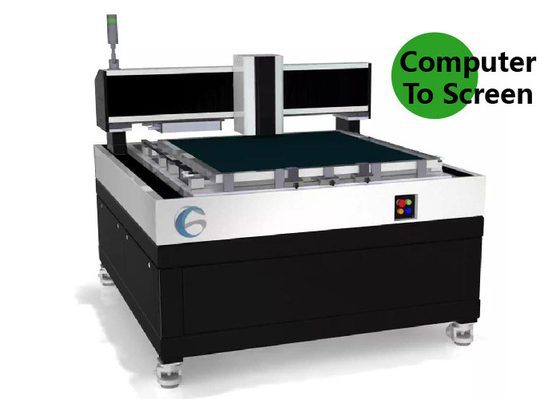

    CTS100 Computer to screen (CTS) machine is mainly for screen making in the textile printing industry. Its precision is 1270 or 2540 dpi, and the maximum screen size is 900x1000 mm. Digital images are produced by DMD (digital micro-mirrordevice) which has over 800 thousand or 2 million micrometer micro-mirrors, enabling clear and sharp squre dots. This latest digital exposure system has now become the new standards for screen printing industry.



Advantages

  1. According to customer requirements, CTS machine can be configured with suitable lens 1.95X (higher accuracy), 2.052X.
  2. GIS develops our own the 405nm coupled laser and laser imaging system to increase laser utilization rate from 30% to 50%.
  3. CTS machine can present the minimum of 50 μm line width and 5% dots on the screen.
  4. CTS machine adopts HIWIN SP class guide rail, linear motor, Renishaw grating ruler, marble bed body to ensure the stability of our equipment.
  5. Our sales and service teams are all over the world. With the support of top technicians, we are committed to solving problems and malfunction in the sales process. We maximize the value of the equipments used.



  1. HIWIN high precision guide rail,linear electric motor Renishaw gratng ruler;
  2. DMD exposure system;
  3. Up to 120 line;
  4. Image 1270dpi;
  5. Integrated high strength steel structure

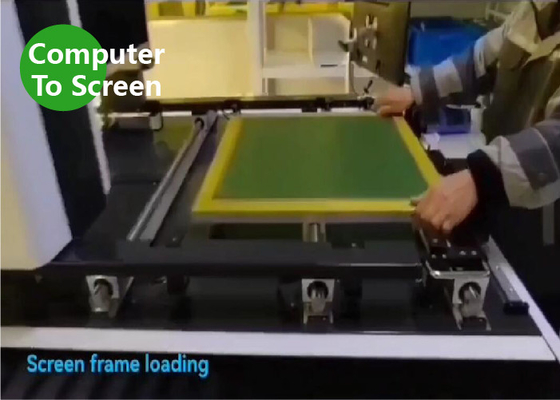

The maximum screen frame size can reach 900x1000.



  Specification / Model

  CTS100
  Max screen size ( mm )   900x1000
  Min screen size ( mm )   400x400

  Max exposure size ( mm )

  800x900
  Screen frame thickness
  (bespoke service is available)
  25-45mm
  Imaging System   DMD DLP Technology
  Emulsion thickness (EOM)   Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    220μm
  Exposure time   120-240s/ ㎡, #350 yellow mesh
  Resolution   1270
  Raster   133LPI
  Focus system   Fixed focusing
  File format   1_bit tiff etc.
  Laser type   UV laser, wavelength 405±5nm
  Laser power   20W
  Equipment size (mm)   1550x1330x1460
  Equipment net weight   1100KG

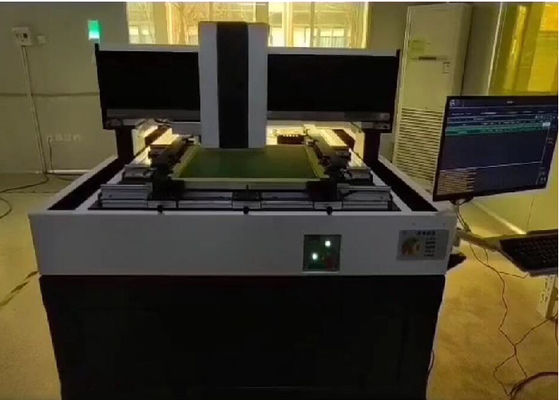

  Conditions   Yellow light room with cleanliness Class 10000, temperature 22±2°C,
  40-70% relative humidity (No condensation)
  Power   Single phase 220v, 50/60HZ, 4KW, Compressed air: 0.6mpa



High Precision:
Resolutions 1270dpi or 2540dpi, with raster 133lpi/dpi (halftones printing)

High Efficiency:
3 minutes to finish the exposure on screen size 1000mm*1000mm. Stencil making efficieny has been greatly improved due to a lot of time is saved by the accurate exposure alignment and lobor reduction.



Low Cost:
Elimination of film positives. Litho film are becoming increasingly expensive and the number of suppliers on the maket is rapidly decreasing. 1 procedure of CTS digital screen making to replace 5 procedures of from the conventional process
