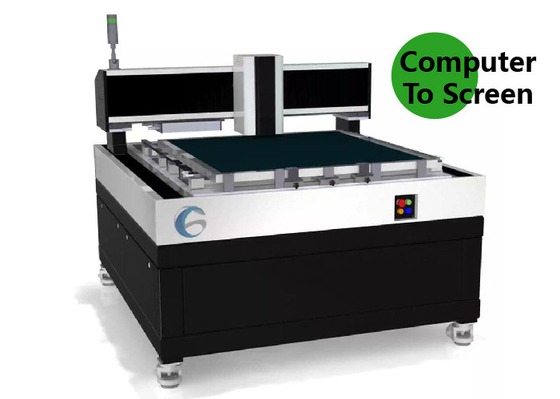

CTS100 CTS Computer To Screen UV Laser 400nm-410nm Textile Glass Printing

CTS100 CTS Computer To Screen UV Laser 400nm-410nm Textile Galass Printing

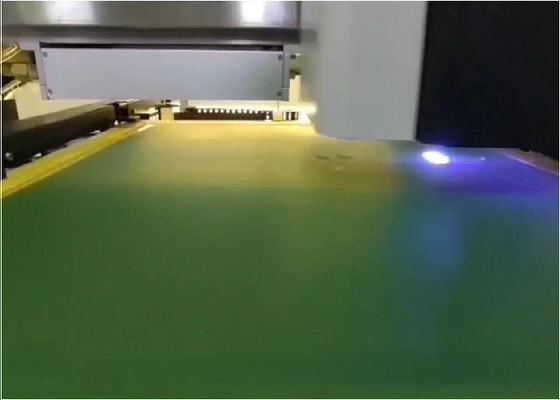

CTS100 equipment is the latest product of CTS (computer to screen) series developed by our company. It is a laser direct imaging equipment based on a digital micro mirror array (DMD) device; In the pattern forming process, this machine will convert graphs into machine data and transmit to the digital micro mirror device (DMD) by the computer, then the graph will be direct projected to the photosensitive material to complete exposure.

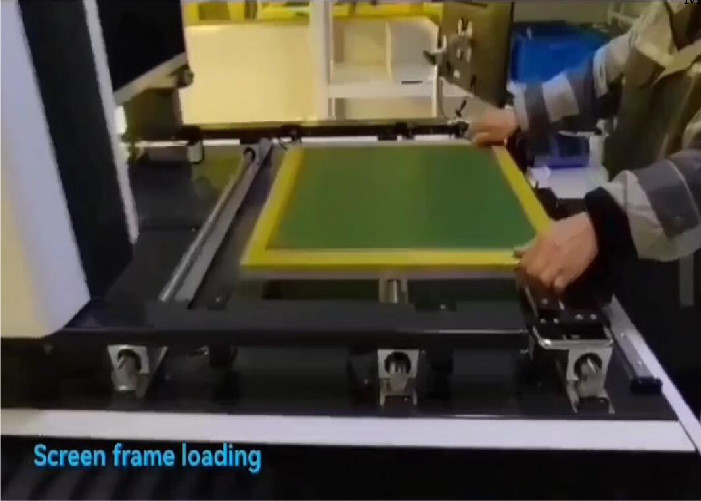

CTS100, the high-power 405nm laser illuminant is used for the CTS series. It has long service life, low power consumption and high image resolution. Capable of high-precision digital exposure directly on the surface of the screen printing stencil together with the high-precision linear motor to provide high-resolution, high-efficiency and low-cost products to customers, with image resolutions: 1270/2540dpi. The stable cooling system guarantees the inside of the equipment maintains 22 ℃. The constant temperature state guarantees the stability of the equipment; The newly designed pneumatic clamp can fix the screen frame tightly, which is convenient to replace the screen frame of various specifications. The maximum stencils size that can be placed is 900*1000 (mm).

Advantages

1. According to customer requirements, CTS machine can be configured with suitable lens 1.95X (higher accuracy), 2.052X.
2. GIS develops our own the 405nm coupled laser and laser imaging system to increase laser utilization rate from 30% to 50%.

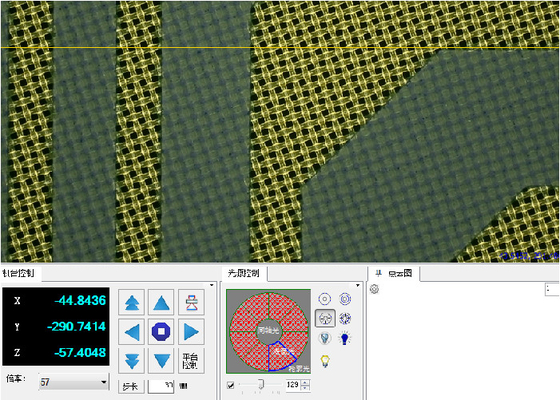

3. CTS machine can present the minimum of 50 μm line width and 5% dots on the screen.
4. CTS machine adopts HIWIN SP class guide rail, linear motor, Renishaw grating ruler, marble bed body to ensure the stability of our equipment.
5. Our sales and service teams are all over the world. With the support of top technicians, we are committed to solving problems and malfunction in the sales process. We maximize the value of the equipments used.

1. HIWIN high precision guide rail,linear electric motor Renishaw gratng ruler;
2. DMD exposure system;
3. Up to 120 line;
4. Image 1270dpi;
5. Integrated high strength steel structure

The maximum screen frame size can reach 900x1000.

High Precision:
Resolutions 1270dpi or 2540dpi, with raster 133lpi/dpi (halftones printing)

High Efficiency:
3 minutes to finish the exposure on screen size 1000mm*1000mm. Stencil making efficieny has been greatly improved due to a lot of time is saved by the accurate exposure alignment and lobor reduction.

Low Cost:
Elimination of film positives. Litho film are becoming increasingly expensive and the number of suppliers on the maket is rapidly decreasing. 1 procedure of CTS digital screen making to replace 5 procedures of from the conventional process
