Automatic Focusing CTS Computer To Screen Printing Machine Solvent Resistant Emulsion 3μM-150μM

Automatic Focusing CTS Computer To Screen Printing Machine Solvent Resistant Emulsion 3μM-150μM

Description
Emulsion Thickness ( EOM ): Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm Max Screen Size ( Mm ): 1200 X 1300 (47.2"x 51.2")
Exposure Time: 120-240s / ㎡, #350 Yellow Mesh File Format: 1_bit Tiff Etc.
Equipment Size (mm): 1500kg (3307lbs) Laser Type: UV Laser, Wavelength 405±5nm
Focus System: Automatic Focusing Max Exposure Size ( Mm ): 1100 X 1250 (43.3"x 49.2")
Highlight:

Automatic Focusing CTS Printing Machine

,

Computer To Screen Printing Machine

,

UV Laser CTS Printing Machine

CTS Computer To Screen Printing Machine With Automatic Focusing Solvent Resistant Emulsion 3μM-150μM Min Screen Size 400

Product Description:

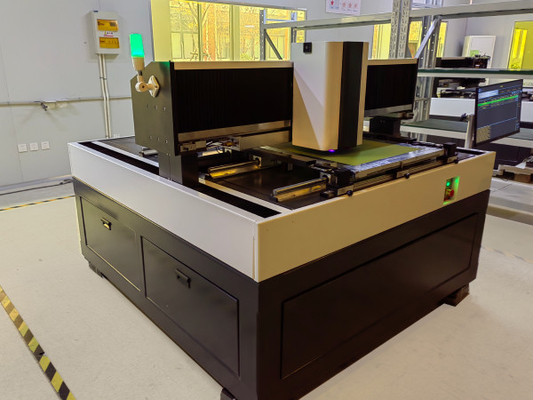

CTS Computer To Screen is a high-resolution direct-to-screen imaging system designed to print onto screens used in the garment industry. It is equipped with an UV laser with a wavelength of 405±5nm and an automatic focusing system, offering 20W or 25W power (optional). It has a maximum resolution of 1270 dpi, and its size is 1500kg (3307lbs). It is a great choice for demanding applications that require a direct to-screen imaging system with a high resolution of 2540 dpi. CTS Computer To Screen is a reliable and cost-effective solution for any printing job.



Features:

  • Product Name:CTS Computer To Screen
  • Laser type:UV Laser, Wavelength 405±5nm
  • Emulsion thickness ( EOM ):Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm
  • Raster:Up To 120 Line
  • Equipment size (mm):1500kg (3307lbs)
  • File format:1_bit Tiff Etc.
  • High Resolution:Yes
  • Direct to-screen imaging system:Yes


Technical Parameters:

Parameter Specs
Laser type UV Laser, Wavelength 405±5nm
Equipment size (mm) 1500kg (3307lbs)
Imaging System DMD DLP Technology
Laser power 20W/25W(Optional)
Max screen size ( mm ) 1200 X 1300 (47.2"x 51.2")
Raster Up To 120 Line
Min screen size ( mm ) 400 X 400 (15.7"x 15.7")
Print Resolution 1270 Dpi
Max exposure size ( mm ) 1100 X 1250 (43.3"x 49.2")
File format 1_bit Tiff Etc.
For Screen Printing Textile YES
High Resolution YES


Applications:

CTS Computer To Screen (CTS) is a direct laser image and exposure machine based on DMD technology with high resolution. It offers a wide range of applications for screen printing, with an impressive maximum screen size of 1200mm X 1300mm (47.2" X 51.2") and a minimum screen size of 400mm X 400mm (15.7" X 15.7"). It is equipped with a solvent resistant emulsion with a thickness ranging from 3μm to 150μm, and a water resistant emulsion with a thickness ranging from 3μm to 350μm, giving you the flexibility to choose the appropriate emulsion for your needs. With a net weight of 1960mm X 1800mm X 1500mm (77.2" X 70.9" X 59.1"), CTS is a reliable and powerful machine that is ideal for various screen printing applications.



Customization:

CTS Computer To Screen

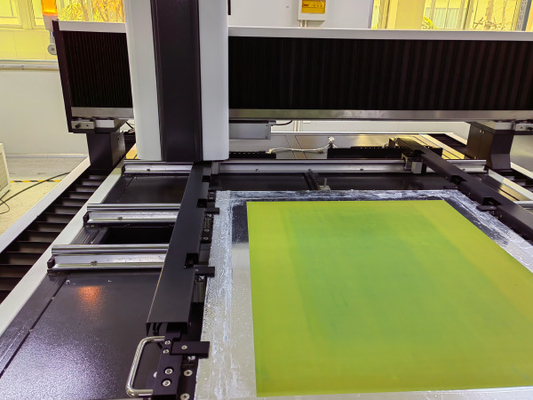

CTS Computer To Screen is a high resolution UV laser direct laser imaging and exposure machine. It enables fast and accurate imaging and exposing of images onto pre-stretched frames. It offers up to 120 line raster resolution with a maximum exposure size of 1100 x 1250 mm (43.3" x 49.2") and a maximum screen size of 1200 x 1300 mm (47.2" x 51.2"). It supports 1-bit TIFF and other file formats.



Support and Services:

CTS Computer To Screen provides technical support and services to ensure that our customers have the best experience with our products. We offer 24/7 customer service and technical support through our website, email, or phone. Our team of experienced technicians is available to help you with any questions or problems you may have. We also offer free software updates and upgrades, as well as on-site installation and training.



Packing and Shipping:

CTS Computer To Screen products are shipped in sturdy cardboard boxes, with foam inserts to protect the product during transit. The boxes are then sealed with a tamper-proof seal and shipped with tracking. For international orders, we use international couriers such as DHL, Fedex, or UPS.

We also take extra precautions with sensitive parts, such as packing them in anti-static bags. We also include a packing slip in each shipment with the items and quantities that were shipped.



FAQ:

  • Q: What is CTS Computer To Screen?
    A: CTS Computer To Screen is a direct-to-screen digital imaging system that produces high quality images with a wide colour gamut and resolution up to 1440 dpi.
  • Q: What are the benefits of CTS Computer To Screen?
    A: CTS Computer To Screen offers a fast and cost-effective digital imaging solution that produces excellent image quality and eliminates the need for film, chemicals and screens.
  • Q: What is the process of using CTS Computer To Screen?
    A: The process of using CTS Computer To Screen is simple and efficient. Images can be sent directly from a computer to the imaging system which then prints the image onto a screen. The screen is then used to expose the image onto a substrate.
  • Q: What substrates are compatible with CTS Computer To Screen?
    A: CTS Computer To Screen is compatible with a wide range of substrates including paper, film, foil, board, and textiles.
  • Q: What is the maximum resolution of CTS Computer To Screen?
    A: CTS Computer To Screen has a maximum resolution of up to 1440 dpi.
