Direct To Screen Imaging System Solvent Resistant With 120-240s Exposure Time/㎡

Direct To Screen Imaging System With 120-240s Exposure Time/㎡ Max Screen Size 47.2"X 51.2" Solvent Resistant Emulsion 3μ

Product Description:

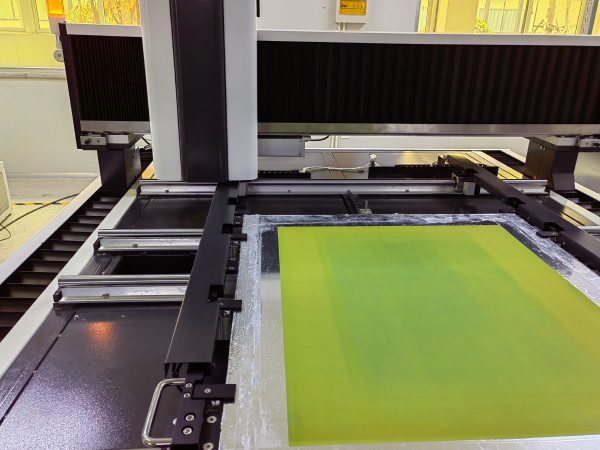

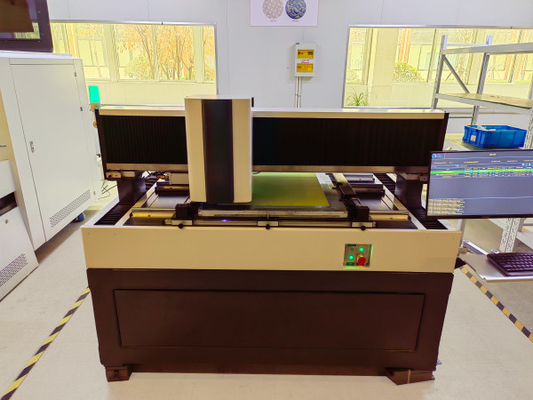

CTS Computer To Screen is a direct laser image and exposure machine that is designed for high accuracy and performance. It can expose a maximum size of 1100 x 1250 millimeters (43.3"x 49.2") with a raster of up to 120 lines. The equipment size is 1500kg (3307lbs). It is equipped with a UV laser with a wavelength of 405±5nm, and the exposure time is 120-240s / ㎡ for #350 Yellow Mesh. CTS Computer To Screen is a reliable and efficient solution for screen printing needs, providing high quality, fast production and low maintenance.

Features:

• Product Name: CTS Computer To Screen
• Emulsion thickness (EOM): Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm
• Print Resolution: 1270 Dpi
• Exposure Time: 120-240s/㎡, #350 Yellow Mesh
• Laser type: UV Laser, Wavelength 405±5nm
• Screen frame thickness: 25-45 Mm (bespoke Service Is Available)
• DMD technology: Direct Laser Image & Exposure machine, 133 LPI raster

Technical Parameters:

Applications:

CTS Computer To Screen, or GIS 100L, is a brand from Suzhou, China, designed for automatic focusing up to 1100 x 1250 (43.3"x 49.2") with a maximum exposure time of 120-240s/㎡, #350 yellow mesh and print resolution of 1270 dpi using raster up to 120 lines. Unique from other brands, GIS 100L incorporates revolutionary DMD technology to provide the highest resolution of 2540 dpi for screen printing textile. It is highly accurate and efficient with the capability of automatic focusing for perfect exposure result.

Customization:

CTS Computer To Screen (GIS 100L) is the perfect solution for screen printing textile with high resolution and 133 LPI raster. This product is manufactured in Suzhou, China and has a Solvent Resistant Emulsion 3μm-150μm and Water Resistant Emulsion 3μm-350μm. The maximum exposure size is 1100 X 1250 (43.3"x 49.2") and it has a UV Laser (Wavelength 405±5nm) with a 20W/25W(Optional). The exposure time is 120-240s / ㎡, #350 Yellow Mesh.

Support and Services:

CTS Computer to Screen provides comprehensive technical support and service for all of its products.

Our technical support team is available to answer your questions about installation, troubleshooting, software updates, and more.

We also offer training and consultation services, so you can learn how to use our products to their fullest potential.

We are committed to providing the highest level of customer service and support, so you can be confident that you are getting the best product available.

Packing and Shipping:

CTS Computer To Screen (CTS) products use special packaging to protect them during shipment. Standard packing materials include a strong cardboard box, bubble wrap, and air bags. All products are inspected prior to being boxed to ensure that they are in perfect condition.

CTS products are shipped with a reliable courier. The courier service is fully tracked and insured, so customers can be confident that their order will arrive safely and on time. All orders include a tracking number and delivery confirmation.
