Product Details:
Place of Origin: Suzhou, China
Brand Name: GIS
Model Number: CTS301

20W/25W/30W Laser Direct To Screen Imaging System Net Weight 2950 X 1980 X 1710

Description
Equipment Net Weight: 2950 X 1980 X 1710 Min Screen Size ( Mm ): 400 X 400
Print Resolution: 12700Dpi Max Exposure Size ( Mm)m ): 1100 X 1250
Equipment Size (mm): 3450kg Max Screen Size ( Mm ): 1080x1800
Focus System: Automatic Focusing Emulsion Thickness ( EOM ): Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm
Highlight:

20W Direct To Screen System

,

Direct To Screen 2950 X 1980 X 1710

,

30W Laser Direct To Screen

Product Description:

CTS (Computer To Screen) is a high-resolution printing solution with an automatic focusing system, which offers superior performance and cost efficiency. It is equipped with a laser power of 20W/25W/30W (optional), 1-bit Tiff/Gerber 274X file format, and a heavy-duty net weight of 3450kg. Its equipment size is 2950 X 1980 X 1710 mm, making it a perfect choice for high-precision printing applications. With its advanced features, CTS offers a highly efficient, reliable and cost-effective printing solution.



Features:

  • Product Name: CTS Computer To Screen
  • Imaging System: DMD DLP Technology
  • Print Resolution: 12700 Dpi
  • Equipment net weight: 2950 X 1980 X 1710
  • Min screen size ( mm ): 400 X 400
  • Focus system: Automatic Focusing
  • Special Feature: Equipped with UV laser and DMD technology, CTS Computer To Screen provides high-resolution printing and automatic focusing for better imaging.


Technical Parameters:

Property Value
Equipment net weight 2950 X 1980 X 1710 mm
Equipment size 3450kg
Laser type UV Laser, Wavelength 405±5nm
Focus system Automatic Focusing
Max exposure size 1100 X 1250 mm
Deviation <0.005%
File format 1_bit Tiff/gerber 274x
Laser power 20W/25W/30W (Optional)
Imaging System DMD DLP Technology
Emulsion thickness Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm
Application For Screen Printing Textile Industry


Applications:

GIS Computer To Screen (CTS301) is a revolutionary product for screen printing textile from Suzhou, China. It is equipped with 12700Dpi laser power of 20W/25W/30W and deviation of less than 0.005%, and has a size of 3450kg and a maximum screen size of 1080x1800mm. It is ideal for high-precision and high-efficiency screen printing work, and provides excellent performance and stability.

The GIS Computer To Screen (CTS301) is designed to be cost-effective and easy to use. It features an intuitive user interface and a wide range of features for accurate and efficient printing. It also offers a wide range of printing options, including spot colors, gradient effects, halftones, and more. With its high precision and accuracy, the GIS CTS301 provides an excellent solution for screen printing projects of any size.

The GIS CTS301 is designed to be reliable and durable. It is constructed from high-quality materials and designed to withstand the rigors of the printing process. It is also equipped with advanced safety features to ensure the safety of your personnel and equipment. The GIS Computer To Screen (CTS301) is the perfect choice for screen printing textiles with accuracy and efficiency.



Customization:

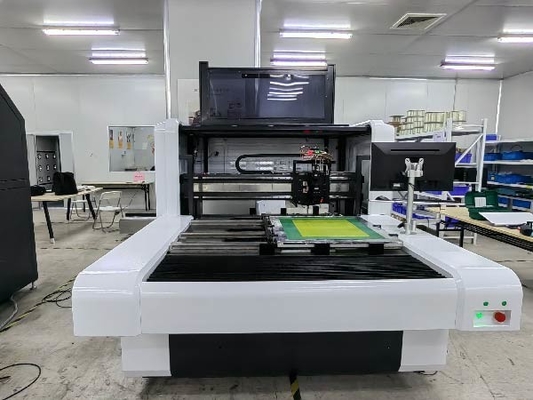

Introducing GIS CTS301 Computer To Screen

GIS CTS301 Computer To Screen is a high-performance UV laser direct imaging system, designed for precision screen making. It offers a maximum exposure size of 1100 X 1250 mm, with a deviation of less than 0.005%. The exposure time is from 120-240s/㎡, when using #350 Yellow Mesh. It has a minimum screen size of 400 X 400mm and a total weight of 3450kg.

The CTS301 Computer To Screen also features advanced 133 LPI raster technology with precise image positioning, allowing for easy and accurate screen making. It is a reliable and efficient system that is perfect for a variety of screen making applications.



Support and Services:

CTS Computer To Screen provides technical support and services for customers and partners. Our team of experienced technical support engineers are available 24/7 to provide assistance with product installation, configuration, troubleshooting, and more.

We also offer a variety of services, including system design and installation, on-site training and support, system maintenance and upgrades, and more. Our experienced technicians are available to provide assistance with any issue you may have.

If you are in need of technical support for CTS Computer To Screen, please contact us at info@CTSComputerToScreen.com or call us at 1-800-XXX-XXXX.



Packing and Shipping:

CTS Computer To Screen product packaging and shipping:

  • Each product is individually boxed and placed in a shipping carton.
  • The shipping carton is then sealed with tape.
  • The Carton is labeled with the product's name, shipping address, and barcode.
  • The carton is then placed in a larger shipping container.
  • The larger container is then sealed with tape and labeled with the shipping address, barcode, and other required information.
  • The container is then shipped via the selected shipping method.


FAQ:

Question Answer
What is GIS CTS301? GIS CTS301 is a Computer To Screen (CTS) device manufactured by GIS, with model number CTS301. It is made in Suzhou, China.
What can GIS CTS301 do? GIS CTS301 is a CTS device that allows direct image output from a computer to a silkscreen. It can save time and cost by eliminating the need for film output.
What type of computers can be used with GIS CTS301? GIS CTS301 can be used with both Windows and Mac operating systems.
What kind of images can GIS CTS301 output? GIS CTS301 can be used to output images in a variety of file formats, including JPEG, TIFF, BMP, and PDF.
Does GIS CTS301 support color separation? Yes, GIS CTS301 supports color separation to meet your specific output requirements.
