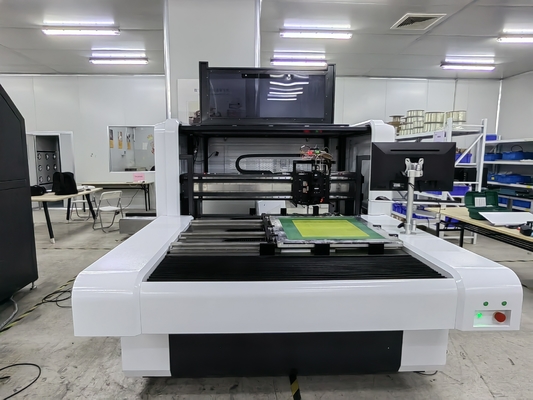

1-Bit Tiff/Gerber 274x High Resolution 2540dpi Exposure Machine 1100x1250mm

1-Bit Tiff/Gerber 274x High Resolution 2540dpi Exposure Machine 1100x1250mm
1-Bit Tiff/Gerber 274x High Resolution 2540dpi Exposure Machine 1100x1250mm 1-Bit Tiff/Gerber 274x High Resolution 2540dpi Exposure Machine 1100x1250mm 1-Bit Tiff/Gerber 274x High Resolution 2540dpi Exposure Machine 1100x1250mm 1-Bit Tiff/Gerber 274x High Resolution 2540dpi Exposure Machine 1100x1250mm

Large Image :  1-Bit Tiff/Gerber 274x High Resolution 2540dpi Exposure Machine 1100x1250mm

Product Details:
Place of Origin: Suzhou, China
Brand Name: GIS
Model Number: CTS301

1-Bit Tiff/Gerber 274x High Resolution 2540dpi Exposure Machine 1100x1250mm

Description
Imaging System: DMD DLP Technology Laser Power: 20W/25W/30W(Optional)
Min Screen Size ( Mm ): 400 X 400 Screen Frame Thickness: 25-45 Mm (bespoke Service Is Available)
Max Screen Size ( Mm ): 1080x1800 Max Exposure Size ( Mm)m ): 1100 X 1250
Equipment Size (mm): 3450kg File Format: 1_bit Tiff/gerber 274x
Highlight:

2540dpi Exposure Machine

,

1100x1250 mm Exposure Machine

,

DMD DLP Technology Exposure Machine

Product Description:

CTS Computer To Screen is a revolutionary printing technology specifically designed for screen printing on textiles. It adopts the high-precision DMD DLP imaging technology to ensure a resolution of up to 2540 dpi, which improves the accuracy and speed of the printing process. The screen frame thickness can be adjusted between 25 to 45 mm, with a minimum size of 400x400 mm and a maximum size of 1080x1800 mm. It also offers a bespoke service for customized requirements. The equipment net weight is 2950 x 1980 x 1710.



Features:

  • Product Name: CTS Computer To Screen
  • Print Resolution: 12700Dpi
  • Emulsion thickness (EOM): Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm
  • Min screen size (mm): 400 X 400
  • File format: 1_bit Tiff/gerber 274x
  • Exposure Time: 120-240s / ㎡, #350 Yellow Mesh
  • Direct Laser Image & Exposure machine
  • 133 LPI raster
  • Direct to-screen imaging system


Technical Parameters:

Parameter Value
Max screen size (mm) 1080x1800
Laser power 20W/25W/30W(Optional)
Imaging System DMD DLP Technology
Screen frame thickness 25-45 Mm (bespoke Service Is Available)
File format 1_bit Tiff/gerber 274x
Focus system Automatic Focusing
Exposure Time 120-240s / ㎡, #350 Yellow Mesh
Deviation <0.005%
Emulsion thickness (EOM) Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm
Max exposure size (mm) 1100 X 1250
Raster 133 LPI raster
Direct Laser Image & Exposure machine Yes


Applications:

GIS CTS301 Computer To Screen (CTS) is the digital direct laser imaging and exposure machine with high resolution printing capabilities. It is the perfect choice for screen printing professionals who need a reliable and accurate equipment to produce high quality prints and images. With a maximum resolution of 2540 dpi, the CTS301 can produce high quality prints with details that are difficult to achieve with other machines. The frame thickness can be adjusted from 25-45 mm, and the emulsion thickness ranges from 3μm-150μm for solvent-resistant and 3μm-350μm for water-resistant emulsions. The net weight of the machine is 2950 X 1980 X 1710, and the deviation rate is below 0.005%. It is the ideal choice for direct laser imaging and exposure in the screen printing industry.



Customization:

GIS CTS301 is an advanced Computer To Screen (CTS) imaging system, which uses UV laser, Wavelength 405±5nm to provide direct to-screen imaging with high accuracy and efficiency. It is equipped with DMD DLP Technology, and the laser power is optional of 20W/25W/30W. The equipment size is 3450kg and net weight is 2950 X 1980 X 1710.

GIS CTS301 provides an effective solution for screen printing industry, and is perfect for customizing and personalizing any garment. The advanced imaging system helps to create a clear and vibrant image on the fabric, while the high-power laser ensures fast processing time. It is reliable, cost-effective and extremely easy to use.



Support and Services:

CTS Computer To Screen (CTS) offers technical support and services for its products. Our dedicated team of experienced technicians provide comprehensive support and guidance for customers. Our technical support includes diagnosing and troubleshooting issues, providing guidance on how to optimize the use of CTS products, and resolving any software or hardware issues. We also provide additional services such as installation, system configuration, and training. Our ultimate goal is to ensure that our customers are satisfied with our products and services.



Packing and Shipping:

CTS Computer To Screen is carefully packaged and shipped with the utmost care to ensure safe delivery to our customers. All orders are shipped within 2-3 business days of the order being placed. We use only the highest quality packaging materials to protect the product during transit. Each shipment is carefully inspected prior to leaving our facility and all orders are shipped with a tracking number.



FAQ:

Q1: What is CTS Computer To Screen?

A1: CTS Computer To Screen (GIS CTS301) is a direct-to-screen imaging device which is manufactured by GIS in Suzhou, China. It is used to transfer digital images to screen printing stencils.

Q2: How does CTS Computer To Screen work?

A2: CTS Computer To Screen is a direct-to-screen imaging device that uses a laser to expose digital images directly onto screen printing stencils. It takes the digital image from the computer and transfers it to the stencil in a fast and accurate way.

Q3: What are the benefits of using CTS Computer To Screen?

A3: CTS Computer To Screen is an efficient and cost-effective way to transfer digital images to screen printing stencils. It is fast, accurate, and produces high-quality images.

Q4: What is the size of the CTS Computer To Screen?

A4: The GIS CTS301 CTS Computer To Screen is approximately 13.7" x 20.5" x 8.7" (35cm x 52cm x 22cm), and weighs about 35.2 lbs (16kg).

Q5: What is the warranty on the CTS Computer To Screen?

A5: GIS provides a one-year warranty on the CTS Computer To Screen (GIS CTS301). For more information, please refer to the product manual.
