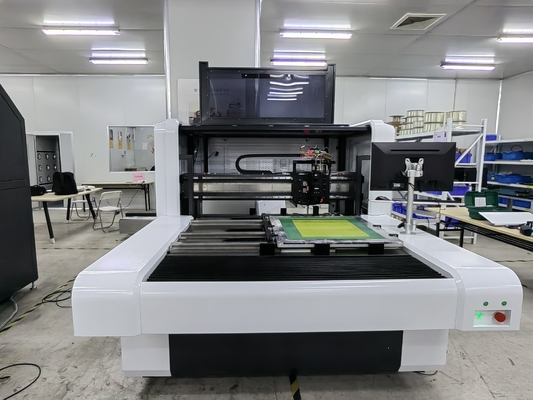

CTS 1100X1250mm Automatic Focusing Computer To Screen Printing System

Product Details

Place of Origin: Suzhou, China

Brand Name: GIS

Model Number: CTS301

Payment & Shipping Terms

Get Best Price
Product Details
Highlight:

Automatic Focusing CTS Printing System

,

CTS Computer To Screen System

,

1100X1250 MM CTS System

Emulsion Thickness ( EOM ):
Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm
Print Resolution:
12700Dpi
Imaging System:
DMD DLP Technology
Max Screen Size ( Mm ):
1080x1800
Laser Power:
20W/25W/30W(Optional)
Min Screen Size ( Mm ):
400 X 400
Deviation:
<0.005%
Focus System:
Automatic Focusing
Emulsion Thickness ( EOM ):
Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm
Print Resolution:
12700Dpi
Imaging System:
DMD DLP Technology
Max Screen Size ( Mm ):
1080x1800
Laser Power:
20W/25W/30W(Optional)
Min Screen Size ( Mm ):
400 X 400
Deviation:
<0.005%
Focus System:
Automatic Focusing
Product Description

Product Description:

CTS Computer To Screen is an advanced imaging system designed to provide high-quality output with an unbeatable level of accuracy. It offers maximum resolution of 2540 dpi, which makes it perfect for a wide range of applications. The equipment's net weight is 2950 X 1980 X 1710, with a maximum screen size of 1080x1800 and frame thickness of 25-45 mm. It can also be customized to meet individual needs. The system supports a variety of file formats, including 1_bit Tiff/Gerber 274x. Moreover, it is equipped with a 20W/25W/30W laser power for efficient imaging. CTS Computer To Screen is ideal for all kinds of printing applications and is perfect for getting the highest quality prints with excellent accuracy.



Features:

  • Product Name: CTS Computer To Screen
  • Max exposure size (mm): 1100 X 1250
  • Screen frame thickness: 25-45 Mm (bespoke Service Is Available)
  • Min screen size (mm): 400 X 400
  • Focus system: Automatic Focusing
  • Equipment size (mm): 3450kg
  • For Screen Printing Textile, High Resolution
  • DMD technology


Technical Parameters:

Param Value
Min screen size ( mm ) 400 X 400
Laser power 20W/25W/30W(Optional)
Deviation <0.005%
Equipment size (mm) 3450kg
Max exposure size ( mm)m ) 1100 X 1250
Max screen size ( mm ) 1080x1800
Equipment net weight 2950 X 1980 X 1710
Print Resolution 12700Dpi
Focus system Automatic Focusing
File format 1_bit Tiff/gerber 274x
Technology UV laser, High Resolution , UV laser


Applications:

Introducing GIS CTS301, the direct to-screen imaging system specially designed for screen printing textile. This innovative imaging system features a 133 LPI raster, UV Laser and a wavelength of 405±5nm. With a maximum exposure size of 1100 X 1250, GIS CTS301 offers a range of laser power from 20W/25W/30W(Optional). This compact equipment measures 2950 X 1980 X 1710 and weighs approximately 2950kg, making it perfect for both large-scale and small-scale projects.



Customization:

CTS Computer To Screen: GIS CTS301

GIS CTS301 is a state-of-the-art Direct Laser Image & Exposure machine specially designed for Screen Printing Textile. It is equipped with a 405±5nm UV laser, Automatic Focusing system, DMD DLP Technology and Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm. The machine has a minimum screen size of 400 X 400 mm and is made in Suzhou, China.

GIS CTS301 is the perfect choice for those seeking a reliable and efficient Screen Printing Textile machine with all the latest features. Its UV laser technology is capable of producing accurate and precise images that can be used for a variety of applications. It is designed to meet all your Screen Printing Textile needs and is built to last.



Support and Services:

CTS Computer To Screen Technical Support and Service
CTS Computer To Screen provides technical support and services for customers in need. Our technical support team is dedicated to resolving any technical issues you may have with our products.
We offer a range of services, including installation and setup, troubleshooting, and product maintenance. We also provide online support and remote assistance. Our team can be contacted via telephone, email, or live chat.
We strive to provide the best customer service and support possible. Our team is available 24/7 and is ready to help you solve any technical issues you may have. If you have any questions or concerns, please do not hesitate to contact us. We are always here to help.

Packing and Shipping:

CTS Computer To Screen Packaging and Shipping

CTS Computer To Screen products are shipped in sturdy cardboard boxes, designed to protect the product during transport. The packaging is designed to ensure safe and secure delivery of the product and all components are securely fastened. Each package is labelled clearly to indicate the contents and destination.

We use reliable couriers for the delivery of our products. All CTS Computer To Screen products are shipped with tracking numbers, so customers can easily track their order and know when to expect delivery.

We take extra care to ensure that all products are securely packed and labelled correctly. All orders are carefully inspected and packaged by our team of professionals to ensure that the product arrives in perfect condition.



FAQ:

Q&A about GIS CTS301 Computer To Screen
  • Q: What is GIS CTS301 Computer To Screen?
  • A: GIS CTS301 Computer To Screen is a kind of computer-controlled direct output device that can directly output images to the screen.
  • Q: What are the advantages of GIS CTS301 Computer To Screen?
  • A: GIS CTS301 Computer To Screen has a very simple operation, and it is very fast and efficient when outputting images.
  • Q: What is the place of origin of GIS CTS301 Computer To Screen?
  • A: GIS CTS301 Computer To Screen is made in Suzhou, China.
  • Q: What is the size of GIS CTS301 Computer To Screen?
  • A: GIS CTS301 Computer To Screen has a small size and light weight, making it easy to transport and store.
  • Q: What kind of images can GIS CTS301 Computer To Screen output?
  • A: GIS CTS301 Computer To Screen can output a variety of images, such as photos, drawings, text, etc.
