Home > products > CTS Computer To Screen > 2950 X 1980 X 1710 CTS Computer To Screen Equipment For Precise Screen Printing

2950 X 1980 X 1710 CTS Computer To Screen Equipment For Precise Screen Printing

Product Details

Place of Origin: Suzhou, China

Brand Name: GIS

Model Number: CTS301

Payment & Shipping Terms

Get Best Price
Product Details
Highlight:

CTS Computer To Screen Equipment

,

Precise Screen Printing CTS Equipment

,

2950 X 1980 X 1710 CTS Equipment

File Format:
1_bit Tiff/gerber 274x
Focus System:
Automatic Focusing
Laser Type:
UV Laser, Wavelength 405±5nm
Equipment Size (mm):
3450kg
Deviation:
<0.005%
Equipment Net Weight:
2950 X 1980 X 1710
Imaging System:
DMD DLP Technology
Screen Frame Thickness:
25-45 Mm (bespoke Service Is Available)
File Format:
1_bit Tiff/gerber 274x
Focus System:
Automatic Focusing
Laser Type:
UV Laser, Wavelength 405±5nm
Equipment Size (mm):
3450kg
Deviation:
<0.005%
Equipment Net Weight:
2950 X 1980 X 1710
Imaging System:
DMD DLP Technology
Screen Frame Thickness:
25-45 Mm (bespoke Service Is Available)
Product Description

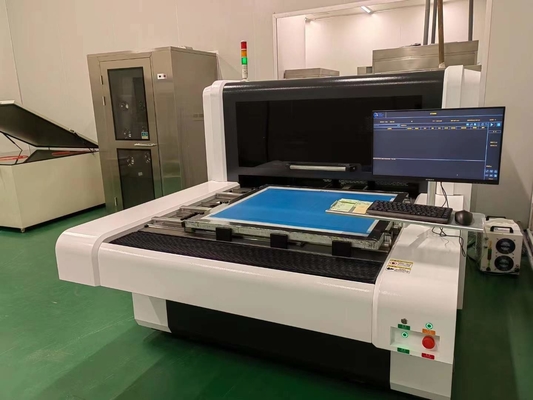

2950 X 1980 X 1710 - CTS Computer To Screen Equipment For Precise Screen Printing

Product Description:

CTS Computer To Screen (CTS) is a highly advanced DMD technology that can provide accurate and fast results with unparalleled efficiency. It utilizes a 2540 dpi resolution that is able to create prints with a deviation of less than 0.005%, and is capable of outputting either 1-bit Tiff or Gerber 274x files. The CTS Computer To Screen is equipped with an impressive 3450kg size and is able to provide 20W, 25W, and 30W laser power options for a range of applications. It also includes Solvent Resistant Emulsion (EOM) that is 3μm-150μm thick, and Water Resistant Emulsion that is 3μm-350μm thick, making it an ideal choice for a variety of projects. This cutting-edge technology is designed to provide accurate and high-quality prints with an impressive speed and efficiency.



Features:

  • Product Name: CTS Computer To Screen
  • Focus system: Automatic Focusing
  • Print Resolution: 12700Dpi
  • Emulsion thickness ( EOM ): Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm
  • Equipment size (mm): 3450kg
  • File format: 1_bit Tiff/gerber 274x
  • Special Feature: UV laser, 133 LPI raster, direct to-screen imaging system


Technical Parameters:

Feature Specification
Product CTS Computer To Screen direct to-screen imaging system
Laser power 20W/25W/30W(Optional)
Equipment size (mm) 2950 X 1980 X 1710
Min screen size ( mm ) 400 X 400
Deviation <0.005%
Print Resolution 12700Dpi
Laser type UV Laser, Wavelength 405±5nm
File format 1_bit Tiff/gerber 274x
Focus system Automatic Focusing
Imaging System DMD DLP Technology
Equipment net weight 3450kg


Applications:

The GIS CTS301 Computer To Screen is equipped with DMD technology and 133 LPI raster, and is designed to provide high resolution printing results with minimum screen frame thickness of 25-45 mm (bespoke service is available). It supports a minimum screen size of 400 x 400 mm and a maximum exposure size of 1100 x 1250 mm. Moreover, the CTS301 is equipped with a powerful automatic focusing system, and can read files in 1-bit TIFF/Gerber 274x format.

By utilizing the advanced DMD technology and 133 LPI raster, the GIS CTS301 Computer To Screen offers a wide range of features suitable for many applications, such as for the printing of textiles, plastics, wood, and other materials. It is an ideal choice for screen printing professionals who need to achieve high quality prints with minimum screen frame thickness.



Customization:

CTS Computer To Screen

Introducing GIS CTS301 computer to screen imaging system, which provides a direct laser image & exposure machine, UV laser, and direct to-screen imaging system. This product is made in Suzhou, China and utilizes DMD DLP Technology, with a minimum screen size of 400 x 400 mm. It is compatible with 1_bit Tiff/gerber 274x file formats, and has a size of 3450kg. Its exposure time is 120-240s / ㎡, #350 Yellow Mesh.



Support and Services:

CTS Computer To Screen Technical Support and Service

CTS Computer To Screen provides technical support and services for our products to help you get the most out of them. We provide:

  • Online technical support
  • Phone technical support
  • Email technical support
  • On-site technical support
  • Software updates and upgrades
  • Hardware maintenance services
  • Training and education

We also provide a variety of other services to assist you in the installation, operation, and maintenance of your CTS Computer To Screen products. These services include:

  • On-site installation and setup
  • Remote system monitoring and management
  • Hardware and software troubleshooting
  • Data backup and recovery
  • System performance optimization
  • Network and security assessments

For more information about our technical support and services, please contact us.



Packing and Shipping:

CTS Computer To Screen (CTS) is shipped in a customized foam-lined box for maximum protection. Foam inserts are designed to ensure that the product is secure during transit. The box includes a handle for easy carrying and a label with a unique tracking number. The box also includes all of the necessary documentation, including a user manual and warranty information. An optional shipping insurance option is available for an additional fee.



FAQ:

  • Q: What is CTS Computer To Screen?
  • A: CTS Computer To Screen (CTS301) is a product of GIS, which is made in Suzhou, China. It is a digital imaging system that produces high-resolution images on a variety of imaging substrates.
  • Q: What are the benefits of CTS Computer To Screen?
  • A: CTS Computer To Screen offers several advantages, such as improved accuracy, increased efficiency, and cost savings. It also produces high-quality images with superior detail and clarity.
  • Q: What substrates are compatible with CTS Computer To Screen?
  • A: CTS Computer To Screen is compatible with a wide range of substrates, including polyester, polycarbonate, and vinyl.
  • Q: What type of images can be produced with CTS Computer To Screen?
  • A: CTS Computer To Screen is capable of producing high-resolution images, including photos, illustrations, logos, and text.
  • Q: What software is required for CTS Computer To Screen?
  • A: CTS Computer To Screen requires compatible RIP software in order to operate properly.
