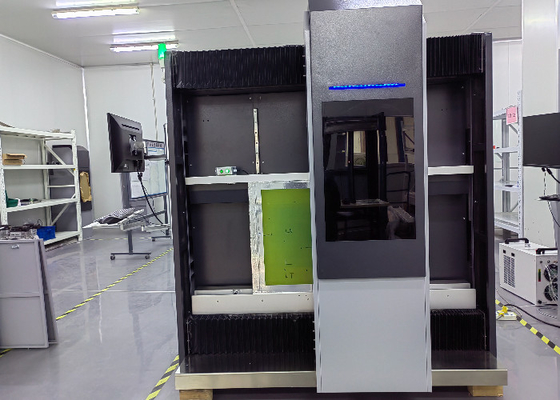

UV Laser Computer To Screen for Precise Screen Printing - Max screen size 1200x1300mm

Product Details

Place of Origin: Suzhou, China

Brand Name: GIS

Model Number: CTS1213V

Payment & Shipping Terms

Get Best Price
Product Details
Highlight:
Screen Frame Thickness:
20-50mm (bespoke Service Is Available)
Emulsion Thickness (EOM):
Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm
Power:
Single Phase 110V/ 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa
Imaging System:
DMD DLP Technology
Conditions:
Yellow Light Room With Cleanliness, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation)
Laser Type:
UV Laser, Wavelength 405±5nm
Equipment Size (mm):
2000x1157.5x2247mm/ 78.7x45.6x88.5"
Exposure Time:
120-240s/㎡, #350 Yellow Mesh
Screen Frame Thickness:
20-50mm (bespoke Service Is Available)
Emulsion Thickness (EOM):
Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm
Power:
Single Phase 110V/ 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa
Imaging System:
DMD DLP Technology
Conditions:
Yellow Light Room With Cleanliness, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation)
Laser Type:
UV Laser, Wavelength 405±5nm
Equipment Size (mm):
2000x1157.5x2247mm/ 78.7x45.6x88.5"
Exposure Time:
120-240s/㎡, #350 Yellow Mesh
Product Description

Product Description:

CTS Computer To Screen

CTS Computer To Screen is an advanced imaging system that provides high-resolution printing in a single-phase 110V/220V, 50/60HZ, 4KW power system with a compressor air of 0.5mpa. It utilizes the latest DMD technology for high-speed imaging with a resolution of up to 1270dpi/2540dpi(Optional). With a minimum screen size of 400x250mm/15.8x9.8", it offers a raster of up to 133LPI and an exposure time of 120-240s/㎡ for #350 yellow mesh. It offers easy operation, high accuracy and high productivity, making it the ideal choice for screen printing.



Features:

  • Product Name: CTS Computer To Screen
  • Emulsion thickness (EOM): Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm
  • Technology: UV laser, DMD technology
  • Exposure time: Depend on resolution and size of screen
  • Min screen size ( mm ): 400x250mm/ 15.8x9.8"
  • Resolution: 1270dpi/2540dpi(Optional)
  • File format: 1_bit Tiff Etc.
  • Max screen size ( mm ): 1200(Height)x1300(length)


Technical Parameters:

Parameter Value
File Format 1_bit Tiff etc.
Max Screen Size (mm) 1200 (Height) x 1300 (Length)
Raster Up to 133 LPI
Laser Type UV Laser, Wavelength 405 ± 5 nm
Focus System Dynamic Focusing
Conditions Yellow Light Room With Cleanliness, Temperature 22 ± 2°C, 40 - 70% Relative Humidity (No Condensation)
Max Exposure Size (mm) 1100 (Height) x 1200 (Length)
Min Screen Size (mm) 400 x 250 mm / 15.8 x 9.8"
Laser Power 20W / 25W (Optional)
Equipment Net Weight 1450KG
Resolution 2540 dpi
Product CTS Computer To Screen


Applications:

CTS Computer To Screen (CTS1213V) is an innovative printing solution from GIS, a leading brand in the field of computer-to-screen technology. It is designed to meet the demands of screen printing textile with high resolution. Featuring a max exposure size of 1100mm (Height) x 1200mm (Length) and a min screen size of 400mm x 250mm/ 15.8 x 9.8", CTS1213V is equipped with a cutting-edge dynamic focusing system and a laser power of 20W/25W (optional). It can provide exposure times of 120-240s/㎡, with a #350 yellow mesh. CTS1213V is the perfect choice for those who are looking for a reliable and efficient way to print textile with high resolution.



Customization:

GIS CTS1213V Direct Laser Image & Exposure machine

GIS CTS1213V Direct Laser Image & Exposure machine is a perfect choice for screen printing industry. It is equipped with DMD technology, 133 LPI raster laser, and supports 20W/25W laser power (optional). The frame thickness of this machine is customizable within 20-50mm, and exposure time is 120-240s/㎡. Resolution can be adjusted to 1270dpi/2540dpi (optional). The minimum screen size is 400x250mm/ 15.8x9.8". It is also capable of #350 Yellow Mesh printing. GIS CTS1213V Direct Laser Image & Exposure machine provides customized service to meet individual requirements.



Support and Services:

CTS Computer To Screen Technical Support and Service

CTS Computer To Screen provides technical support and service for a wide range of products. Our team of experienced engineers and technicians are available to help you with any technical support and service needs. We provide support for:

  • Hardware installation and configuration
  • Software installation and configuration
  • Troubleshooting and issue resolution
  • Product updates and upgrades
  • Product customization and optimization

We also provide remote support via phone, email, and online chat. Our team is available 24/7 to answer any questions you may have and provide timely and effective solutions. Contact us today to learn more about our tech support and service offerings.



Packing and Shipping:

CTS Computer To Screen (CTS) products are shipped in sturdy boxes with plenty of packing material to ensure the product is well protected during transport. All boxes are clearly labeled with the product name, description, and quantity. Our shipping partners are all insured and can be tracked online.

CTS shipping boxes are designed to be as lightweight as possible to reduce shipping costs. Each product is individually wrapped in foam to prevent damage during transit. Additionally, all CTS products are sealed in an anti-static bag to protect against static electricity.

For international shipments, CTS products are packed in a double walled cardboard box with additional packing material. The box is clearly labeled with the product name, description, and quantity. All boxes are securely strapped and sealed to prevent any damage during transport.



FAQ:

Q: What is GIS CTS Computer To Screen?
A: GIS CTS Computer To Screen (Model Number: CTS1213V) is a computer-to-screen system developed by GIS, a technology company based in Suzhou, China.
Q: What are the features of GIS CTS Computer To Screen?
A: GIS CTS Computer To Screen comes with a range of features, including: automatic exposure, imaging accuracy, and precise registration.
Q: What is the advantage of using GIS CTS Computer To Screen?
A: GIS CTS Computer To Screen is designed to increase production efficiency and reduce wastage. It also helps to ensure the highest quality printing results.
Q: How do I install GIS CTS Computer To Screen?
A: GIS CTS Computer To Screen is easy to install and comes with a detailed user manual. If you have any questions, you can also contact GIS for assistance.
Q: What type of materials can I use with GIS CTS Computer To Screen?
A: GIS CTS Computer To Screen is designed to work with different types of materials, including fabrics, films, and papers.
