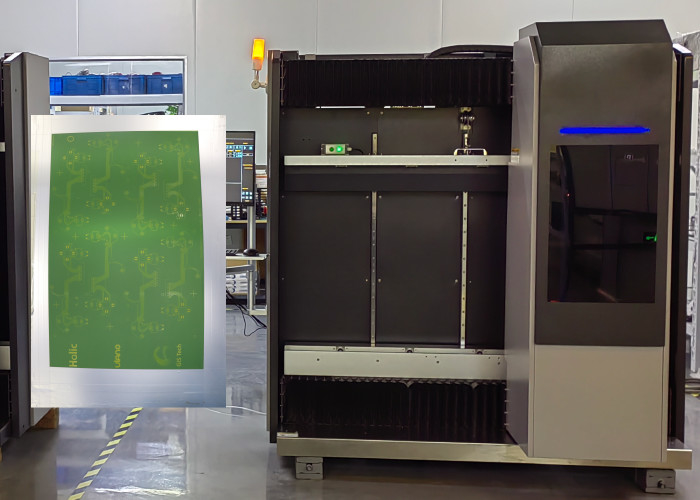

Max Screen Size 1200x1300 CTS with UV Laser B2B Industrial Solutions

Product Details

Place of Origin: Suzhou, China

Brand Name: GIS

Certification: CE

Model Number: CTS1213V

Payment & Shipping Terms

Get Best Price
Product Details
Highlight:
Focus System:
Dynamic Focusing
Laser Type:
UV Laser, Wavelength 405±5nm
Exposure Time:
120-240s/㎡, #350 Yellow Mesh
Emulsion Thickness (EOM):
Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm
Min Screen Size ( Mm ):
400x250mm/ 15.8x9.8"
Power:
Single Phase 110V/ 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa
Equipment Net Weight:
1450KG
Application:
Textile, Decal, Label, Decoration, Packaging And PCB Etc.
Focus System:
Dynamic Focusing
Laser Type:
UV Laser, Wavelength 405±5nm
Exposure Time:
120-240s/㎡, #350 Yellow Mesh
Emulsion Thickness (EOM):
Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm
Min Screen Size ( Mm ):
400x250mm/ 15.8x9.8"
Power:
Single Phase 110V/ 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa
Equipment Net Weight:
1450KG
Application:
Textile, Decal, Label, Decoration, Packaging And PCB Etc.
Product Description

Product Description:

CTS Computer To Screen is a direct to-screen imaging system for textile screen printing with DMD technology. It features a UV laser with a wavelength of 405±5nm, a laser power of 20W/25W(optional), a minimum screen size of 400x250mm/15.8x9.8", and up to 133LPI raster. This system is designed to be used under yellow light room with cleanliness, a temperature of 22±2°C, and a relative humidity of 40-70% (no condensation). Thanks to its advanced DMD technology, CTS Computer To Screen is able to deliver high-precision direct to-screen imaging, enabling users to achieve superior screen printing results.



Features:

  • Product Name: CTS Computer To Screen
  • Focus System: Dynamic Focusing with DMD technology
  • Max Exposure Size (mm): 1100(Height) x 1200(length)
  • File Format: 1_bit Tiff Etc.
  • Screen Frame Thickness: 20-50mm (Bespoke Service Is Available)
  • Equipment Size (mm): 2000x1157.5x2247mm/ 78.7x45.6x88.5"
  • Application: For Screen Printing Textile


Technical Parameters:

CTS Computer To Screen Parameter
Resolution 1270dpi/2540dpi(Optional)
Equipment net weight 1450KG
Raster Up To 133LPI, For Screen Printing Textile
Focus system Dynamic Focusing
File format 1_bit Tiff Etc.
Imaging System DMD DLP Technology
Laser power 20W/25W(Optional)
Equipment size (mm) 2000x1157.5x2247mm/ 78.7x45.6x88.5"
Max screen size ( mm ) 1200(Height)x1300(length)
Power Single Phase 110V/ 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa


Applications:

GIS CTS1213V Computer To Screen is the perfect product for textile screen printing. Its 133 LPI raster and dynamic focusing system allows for high-quality printing. The screen frame thickness of GIS CTS1213V is adjustable from 20-50mm, and the maximum screen size is 1200(Height)x1300(Length). It is designed to work in a yellow light room with cleanliness, temperature of 22±2°C and 40-70% relative humidity (no condensation). Additionally, bespoke service is available for special requirements. GIS CTS1213V can meet all your professional needs.



Customization:

CTS Computer To Screen

GIS CTS1213V is a direct to-screen imaging system which provides 133 LPI raster, ideal for screen printing textile. It features a resolution of 1270dpi/2540dpi (optional), net weight of 1450KG, and single phase 110V/220V, 50/60HZ, 4KW, compressor air 0.5mpa. To ensure the best performance, it should be operated in a yellow light room with cleanliness, a temperature of 22±2°C, and a relative humidity of 40-70% with no condensation. It is able to accept 1_bit Tiff etc. file format.

This CTS Computer To Screen is manufactured in Suzhou, China, and is the ideal choice for anyone looking to create perfect screen prints with a reliable and cost-effective direct to-screen imaging system.



Support and Services:

CTS Computer To Screen provides technical support and services for its products. Our experienced technical team is always available to provide quick and reliable support with any questions or technical problems you may have. We offer free online support and customer service, as well as free phone support and remote desktop support for more complex issues. We also provide a variety of hardware and software updates, as well as specialized services such as system installation, custom installation, and troubleshooting. Our technical support and services are designed to help you get the most out of your CTS Computer To Screen product.



Packing and Shipping:

CTS Computer To Screen products are packaged and shipped in the following manner:

  • All products are securely packaged in a box or padded envelope.
  • All products are shipped via a reputable carrier.
  • Tracking information is available for all orders.


FAQ:

Q:What is CTS Computer To Screen?
A:CTS Computer To Screen (CTS) is a product from GIS with model number CTS1213V. It is designed and manufactured in Suzhou, China.
Q:What are the benefits of CTS Computer To Screen?
A:CTS Computer To Screen offers a number of benefits, including faster and more accurate production, improved accuracy of color matching, and improved print quality.
Q:What types of products can be produced using CTS Computer To Screen?
A:CTS Computer To Screen can be used to produce a wide range of products, such as textiles, apparel, packaging, and printed materials.
Q:What are the advantages of using CTS Computer To Screen?
A:The advantages of using CTS Computer To Screen include improved accuracy and speed of production, increased efficiency, and improved print quality.
Q:What type of support is available for CTS Computer To Screen?
A:GIS provides online support resources for CTS Computer To Screen, including product documentation, technical support, and software updates.
