Product Details
Place of Origin: Suzhou, China
Brand Name: GIS
Model Number: CTS1213V
Payment & Shipping Terms
Power: |
Single Phase 110V/ 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa |
Focus System: |
Dynamic Focusing |
Screen Frame Thickness: |
20-50mm (bespoke Service Is Available) |
Emulsion Thickness (EOM): |
Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm |
Raster: |
Up To 133LPI |
Min Screen Size ( Mm ): |
400x250mm/ 15.8x9.8" |
Equipment Net Weight: |
1450KG |
Laser Type: |
UV Laser, Wavelength 405±5nm |
Power: |
Single Phase 110V/ 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa |
Focus System: |
Dynamic Focusing |
Screen Frame Thickness: |
20-50mm (bespoke Service Is Available) |
Emulsion Thickness (EOM): |
Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm |
Raster: |
Up To 133LPI |
Min Screen Size ( Mm ): |
400x250mm/ 15.8x9.8" |
Equipment Net Weight: |
1450KG |
Laser Type: |
UV Laser, Wavelength 405±5nm |

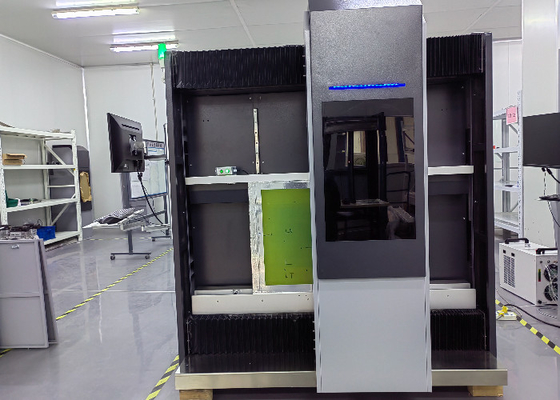

CTS Computer To Screen is an innovative direct to-screen imaging system for textile screen printing. It adopts advanced DMD technology, and can handle up to 1_bit Tiff file format. With a maximum resolution of up to 133LPI, it can expose up to 1200mm (height) x 1300mm (length) screen with exposure time of 120-240s/㎡, and a screen frame thickness of 20-50mm. The system also provides a bespoke service to meet the special needs of customers. CTS Computer To Screen is the perfect choice for screen printing of textile, providing outstanding results with accurate color reproduction.
| Parameter Name | Specification |
|---|---|
| File format | 1_bit Tiff Etc. |
| Max exposure size (mm) | 1100(Height)x1200(length) |
| Equipment net weight | 1450KG |
| Laser power | 20W/25W(Optional) |
| Imaging System | DMD DLP Technology |
| Application | Textile, Decal, Label, Decoration, Packaging And PCB Etc. |
| Max screen size (mm) | 1200(Height)x1300(length) |
| Conditions | Yellow Light Room With Cleanliness, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation) |
| Emulsion thickness (EOM) | Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm |
| Equipment size (mm) | 2000x1157.5x2247mm/ 78.7x45.6x88.5" |
CTS Computer To Screen, manufactured by GIS, is a direct laser image and exposure machine with a model number of CTS1213V. It is made in Suzhou, China and boasts a compact size of 2000x1157.5x2247mm/ 78.7x45.6x88.5". It offers a wide range of emulsion thickness options between 3μm-150μm for solvent resistant emulsion and 3μm-350μm for water resistant emulsion. The CTS Computer To Screen is suitable for use in yellow light rooms with cleanliness, temperature of 22±2°C and relative humidity of 40-70% (no condensation). It has an exposure time of 120-240s/㎡ with #350 yellow mesh and is able to accommodate screens as small as 400x250mm/ 15.8x9.8". It is the perfect direct-to-screen imaging system for any production line.
GIS CTS1213V is a Direct Laser Image & Exposure machine, also known as Computer To Screen (CTS). It features Dynamic Focusing with single phase 110V/ 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa, Exposure time: 120-240s/㎡, #350 Yellow Mesh, and Max exposure size ( mm ): 1100(Height)x1200(length). The Screen frame thickness is customizable between 20-50mm. Moreover, CTS Computer To Screen is made in Suzhou, China.
CTS Computer To Screen provides technical support and services to customers who are using our product. We offer a variety of support options, such as online and phone support, as well as on-site service and repair. Our team of experienced technicians can provide troubleshooting and resolution of technical issues, installation and configuration assistance, and product training.
We also provide remote technical support, allowing our technicians to access your system remotely to diagnose and repair problems. Our technical support team is available 24/7 to answer your questions and provide assistance.
We strive to provide the best customer service experience possible and guarantee our customers will be satisfied with our services. If you have any questions or need assistance, please do not hesitate to contact us.
CTS Computer To Screen products are packaged and shipped with the utmost care and consideration for both product safety and environmental sustainability. Each product is safely packaged with bubble wrap and cardboard boxes, and shipped either via land or air transport.
For international shipments, CTS Computer To Screen has a number of approved shipping agents and carriers, ensuring a safe and timely arrival of the product. All shipments are tracked, so customers can monitor the progress of their order.
CTS Computer To Screen also offers optional insurance for all shipments, allowing customers to protect their purchase in the event of damage or loss.
