Product Details:
Place of Origin: Suzhou, China
Brand Name: GIS
Certification: CE
Model Number: CTS1213V

350 Yellow Mesh Direct To Screen Imaging System With Precise Emulsion Thickness EOM

Description
Laser Power: 20W/25W(Optional) Max Exposure Size ( Mm ): 1100(Height)x1200(length)
Application: Textile, Decal, Label, Decoration, Packaging And PCB Etc. Raster: Up To 133LPI
Max Screen Size ( Mm ): 1200(Height)x1300(length) Equipment Net Weight: 1450KG
Screen Frame Thickness: 20-50mm (bespoke Service Is Available) Equipment Size (mm): 2000x1157.5x2247mm/ 78.7x45.6x88.5"
Highlight:

Direct To Screen Imaging System

,

EOM Direct To Screen Imaging System

,

50mm Screen Frame DTS System

350 Yellow Mesh Direct To-Screen Imaging System With Precise Emulsion Thickness EOM

Product Description:

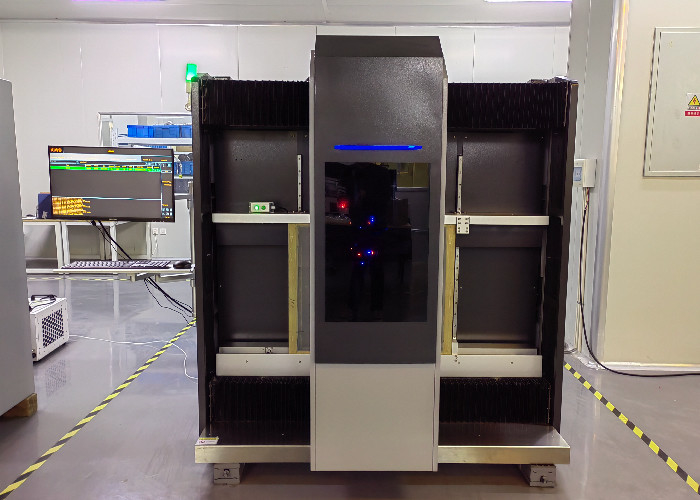

CTS Computer To Screen is a Direct Laser Image & Exposure machine designed to produce highly accurate and reproducible images onto a wide range of substrates including fabrics, textiles, wood and many other materials. It is an ideal solution for creating a wide variety of patterns and designs with maximum accuracy and precision. It is designed for use in Yellow Light Room with cleanliness, temperature 22±2°C, 40-70% relative humidity (no condensation) and single-phase 110V/220V, 50/60HZ, 4KW, compressor air 0.5mpa. With its advanced DMD DLP technology, CTS Computer To Screen can produce high-quality images in a minimum screen size of 400x250mm/15.8x9.8" in 1-bit Tiff etc. file format.



Features:

  • Product Name: CTS Computer To Screen
  • Equipment net weight: 1450KG
  • Raster: Up To 133LPI
  • Laser power: 20W/25W(Optional)
  • File format: 1_bit Tiff Etc.
  • Max screen size ( mm ): 1200(Height)x1300(length)
  • Technology: DMD technology


Technical Parameters:

Parameter Value
Product Computer To Screen, High Resolution, For Screen Printing Textile
Raster Up To 133LPI
Exposure time 120-240s/㎡, #350 Yellow Mesh
Equipment size (mm) 2000x1157.5x2247mm/ 78.7x45.6x88.5"
Equipment net weight 1450KG
Laser type UV Laser, Wavelength 405±5nm
Conditions Yellow Light Room With Cleanliness, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation)
File format 1_bit Tiff Etc.
Max exposure size ( mm ) 1100(Height)x1200(length)
Laser power 20W/25W(Optional)
Screen frame thickness 20-50mm (bespoke Service Is Available)


Applications:

CTS Computer To Screen is a UV laser direct laser imaging and exposing machine developed by GIS. Its model number is CTS1213V and it is manufactured in Suzhou, China. This machine is capable of achieving a maximum exposure size of 1100mm (height)x1200mm (length) with a minimum screen size of 400mm x 250mm (15.8x9.8 inches). Its equipment size is 2000mm x 1157.5mm x 2247mm (78.7x45.6x88.5 inches). It supports a raster up to 133LPI and is equipped with a 20W/25W (optional) laser power. The direct laser imaging and exposing machine is based on DMD technology and is capable of providing high-quality images with great accuracy.

The CTS Computer To Screen is perfect for various printing purposes, such as industrial printing, commercial printing, and textile printing. It is ideal for printing on a variety of materials, including cloth, canvas, leather, paper, wood, etc. It is also suitable for printing on various object surfaces, such as vehicles, phones, walls, etc..

The CTS Computer To Screen is user-friendly and provides a fast and efficient imaging and exposing process. It is highly efficient and provides great accuracy, due to the use of UV laser technology and DMD technology. It is also highly reliable and durable, making it a great choice for long-term use.



Customization:

CTS Computer To Screen

Brand Name: GIS

Model Number: CTS1213V

Place of Origin: Suzhou, China

Equipment net weight: 1450KG

Imaging System: DMD DLP Technology

For Screen Printing Textile

Exposure time: 120-240s/㎡, #350 Yellow Mesh

Max exposure size ( mm ): 1100(Height)x1200(length)

Laser type: UV Laser, Wavelength 405±5nm



Support and Services:

CTS Computer To Screen provides technical support and service for its products. Technical support is available for customers who have purchased the product, providing troubleshooting advice, help with installation and setup, software updates, and other technical assistance. Service is available for customers who need assistance with repairs or replacements of their products. The service team is available to help with any and all technical issues, and can provide advice and guidance for any issues that may arise during product usage.



Packing and Shipping:

CTS Computer To Screen Packaging and Shipping

Our CTS Computer To Screen products are packaged with a special foam insert that is designed to protect your product during transit. The product is then placed in a cardboard box and sealed with packing tape. All orders are shipped via UPS or FedEx.

To ensure that your product arrives in good condition, please inspect the box and its contents upon delivery. If there is any sign of damage, please contact us immediately.



FAQ:

Q1: What is CTS Computer To Screen?

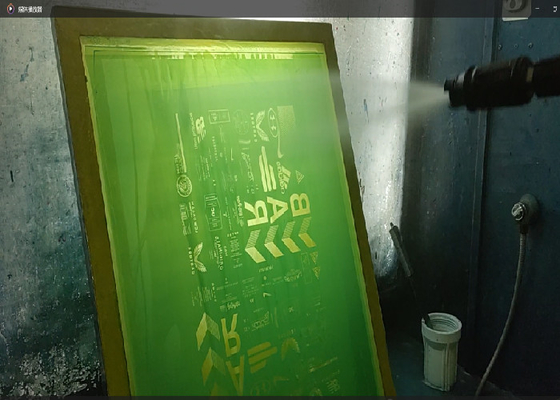

A1: CTS Computer To Screen (CTS1213V) is an imaging technology developed by GIS, a brand from Suzhou, China, that allows users to expose a digital image directly to a screen mesh.
Q2: What are the advantages of CTS Computer To Screen?
A2: CTS Computer To Screen not only reduces the production steps and time, but also increases the accuracy of the images, which helps users produce high-quality products.
Q3: What are the applications of CTS Computer To Screen?
A3: CTS Computer To Screen can be used in a variety of printing applications, including textiles, ceramics, wood, glass, metal, etc.
Q4: What type of image files can be used with CTS Computer To Screen?
A4: CTS Computer To Screen supports a variety of image formats, including TIFF, JPEG, PSD, BMP, etc.
Q5: What is the resolution of CTS Computer To Screen?
A5: CTS Computer To Screen offers a maximum resolution of up to 800dpi, which is ideal for producing high-quality prints.
