Product Details
Place of Origin: Suzhou, China
Brand Name: GIS
Certification: CE
Model Number: CTS1213V
Payment & Shipping Terms
Power: |
Single Phase 110V/ 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa |
Laser Type: |
UV Laser, Wavelength 405±5nm |
Resolution: |
1270dpi/2540dpi(Optional) |
Emulsion Thickness (EOM): |
Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm |
Exposure Time: |
120-240s/㎡, #350 Yellow Mesh |
File Format: |
1_bit Tiff Etc. |
Focus System: |
Dynamic Focusing |
Equipment Net Weight: |
1450KG |
Power: |
Single Phase 110V/ 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa |
Laser Type: |
UV Laser, Wavelength 405±5nm |
Resolution: |
1270dpi/2540dpi(Optional) |
Emulsion Thickness (EOM): |
Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm |
Exposure Time: |
120-240s/㎡, #350 Yellow Mesh |
File Format: |
1_bit Tiff Etc. |
Focus System: |
Dynamic Focusing |
Equipment Net Weight: |
1450KG |

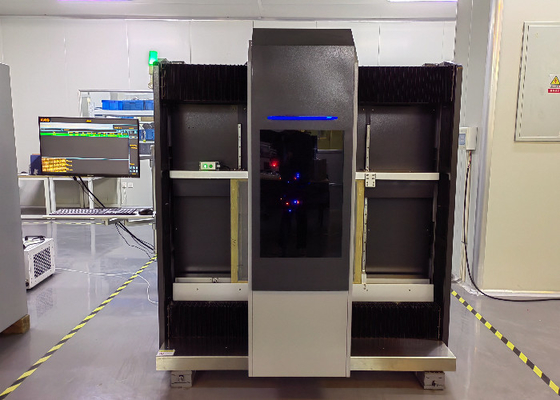

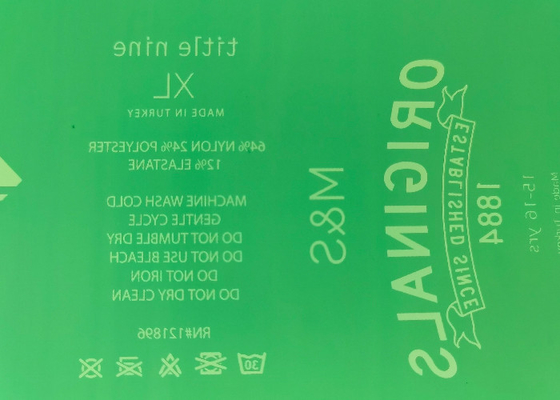

CTS Computer To Screen is a direct to-screen imaging system that provides excellent quality of 2540 dpi and up to 133LPI raster. It is a Direct Laser Image & Exposure machine that is widely used for textile, decal, label, decoration, packaging and PCB applications. It is capable of producing high-resolution images and enables fast and accurate screen making. The equipment net weight is 1450 kg and the size is 2000x1157.5x2247 mm/ 78.7x45.6x88.5. It requires a yellow light room with cleanliness, temperature of 22±2°C, and 40-70% relative humidity (no condensation) for optimal performance. CTS Computer To Screen is a reliable and cost-effective solution for screen making.
Parameter | Details |
---|---|
Screen frame thickness | 20-50mm (bespoke Service Is Available) |
Imaging System | DMD DLP Technology |
Laser power | 20W/25W(Optional) |
File format | 1_bit Tiff Etc. |
Resolution | 1270dpi/2540dpi(Optional) |
Exposure time | 120-240s/㎡, #350 Yellow Mesh |
Power | Single Phase 110V/ 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa |
Application | Textile, Decal, Label, Decoration, Packaging And PCB Etc. |
Raster | Up To 133LPI |
Conditions | Yellow Light Room With Cleanliness, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation) |
CTS Computer To Screen, a brand of GIS, is a direct to-screen imaging system with model number CTS1213V, which is made in Suzhou, China. It features a raster up to 133LPI, resolution of 1270dpi or optional 2540dpi, power of single phase 110V/220V, 50/60HZ, 4KW and compressor air of 0.5mpa. It is widely applied in textile, decal, label, decoration, packaging and PCB etc. with exposure time of 120-240s/㎡ and #350 yellow mesh. Moreover, it is equipped with advanced UV laser and provides better resolution up to 2540dpi.
Brand Name: GIS
Model Number: CTS1213V
Place of Origin: Suzhou, China
Conditions: Yellow Light Room With Cleanliness, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation)
Power: Single Phase 110V/ 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa
Equipment size (mm): 2000x1157.5x2247mm/ 78.7x45.6x88.5
Focus system: Dynamic Focusing
Max screen size ( mm ): 1200(Height)x1300(length)
UV Laser: High Resolution, 2540 dpi
CTS Computer To Screen (CTS) provides technical support and services to ensure that your CTS system runs smoothly and efficiently.
We offer both in-person and remote technical support and services to our customers, including installation, setup, troubleshooting, maintenance, and repair. Our team of experienced technicians is available 24/7 to help you with any issue you may have with your CTS system.
We also provide dedicated technical support for software upgrades, to ensure that your CTS system is running the latest version and is up-to-date. Our software updates are designed to improve the performance and reliability of your CTS system.
We also offer training and educational services to our customers, to help them get the most out of their CTS system. Our training and educational services include online tutorials, webinars, and hands-on instruction.
If you have any questions about our technical support and services, please do not hesitate to contact us.
CTS Computer To Screen Packaging and Shipping
CTS products will be shipped in protective packaging. The packing material used is approved and certified for the products shipped.
For small items, the products will be bubble-wrapped and placed in a box. For larger items, the products will be shipped in a corrugated cardboard box. The packages will be properly labeled and marked with the correct address.
We will use the most reliable and cost-effective shipping method for each order. We have partnered with leading global carriers to provide the best shipping options available.
