| Brand Name: | GIS |
| Model Number: | CTS1213V |

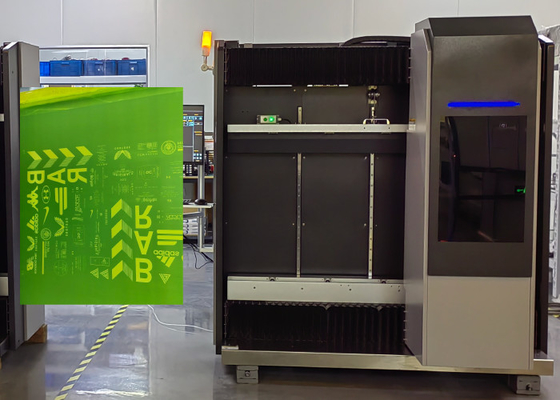

CTS Computer To Screen (CTS) is a revolutionary direct to-screen imaging system that utilizes DMD (Digital Micromirror Device) technology to provide precise imaging results for textiles, decals, labels, decorations, packaging, and PCBs. It is an ideal solution for high-volume production and can provide up to 133 LPI raster with exposure time of 120-240s/㎡. It is equipped with a UV laser of wavelength 405±5nm and laser power of 20W/25W (Optional), and its size is 2000x1157.5x2247mm/ 78.7x45.6x88.5, suitable for #350 Yellow Mesh. CTS is designed to meet your needs for high-precision and quick-turnaround production. It is the perfect choice for those who are looking for a reliable, efficient, and cost-effective direct to-screen imaging system.
| Parameter | Specification |
|---|---|
| Exposure time | 120-240s/㎡, #350 Yellow Mesh |
| Raster | Up To 133LPI |
| Laser power | 20W/25W(Optional) |
| File format | 1_bit Tiff Etc. |
| Equipment size(mm) | 2000x1157.5x2247mm/ 78.7x45.6x88.5 |
| Screen frame thickness | 20-50mm (Bespoke Service Is Available) |
| Emulsion thickness (EOM) | Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm |
| Imaging System | DMD DLP Technology |
| Conditions | Yellow Light Room With Cleanliness, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation) |
| Min screen size(mm) | 400x250mm/ 15.8x9.8 |
CTS Computer To Screen, by GIS, is a high resolution, direct laser image & exposure machine with model number CTS1213V. It is made in Suzhou, China, and has a file format of 1_bit Tiff Etc. It can handle raster up to 133LPI, and screen frame thickness of 20-50mm. In addition, its maximum exposure size is 1100(Height)x1200(length), and it is equipped with solvent resistant emulsion 3μm-150μm, or water resistant emulsion 3μm-350μm. Moreover, CTS Computer to Screen provides bespoke service according to customers' needs. It is an ideal solution for high resolution and direct laser image & exposure applications.
GIS CTS1213V is a Computer To Screen System, which adopts the latest UV laser technology to deliver a high resolution up to 2540 dpi, offering you a great printing experience.
This product is made in Suzhou, China, with high quality standards. It needs to be used in a yellow light room with cleanliness, temperature 22±2°C, 40-70% relative humidity (no condensation). Its power is single phase 110V/ 220V, 50/60HZ, 4KW, compressor air 0.5mpa, and the laser power is 20W/25W (optional). The screen frame thickness is 20-50mm (bespoke service is available) and the maximum exposure size is 1100(Height)x1200(length).
CTS Computer To Screen offers technical support and service to ensure the best possible product performance for our customers. Our technical support team is knowledgeable and experienced in all aspects of the product, and is available to provide assistance with installation, setup, troubleshooting, and maintenance. We also offer a comprehensive suite of services designed to help you get the most out of your product, including training, custom programming, and technical support.
Our technical support team is available 24 hours a day, 7 days a week, and can be reached by phone, email, or online chat. We also have an extensive library of online resources, such as FAQs, tutorials, and product documentation. Additionally, we offer online support forums where customers can get help from other experienced users.
If you ever have any questions or need assistance with any aspect of CTS Computer To Screen, please do not hesitate to contact us. We are here to help!
CTS Computer To Screen products are packaged and shipped with care to ensure that they arrive in perfect condition. All products are carefully inspected before they are packaged and sealed to protect them from damage during shipping. Each product is securely packed in a box with padding to provide additional protection. The box is then sealed with tape and labeled for shipping.
The product is then shipped via a reputable carrier. The carrier is responsible for delivery and tracking of the package. Customers are provided with a tracking number that they can use to monitor the progress of their shipment. All packages are insured to cover any potential damage or loss during transit.
