Decoration CTS Computer To Screen Imaging System DMD DLP Technology

Product Details

Place of Origin: Suzhou, China

Brand Name: GIS

Model Number: CTS1213V

Payment & Shipping Terms

Get Best Price
Product Details
Highlight:

DMD Computer To Screen

,

DLP Computer To Screen

,

CTS Computer To Screen Imaging System

Raster:
Up To 133LPI
Emulsion Thickness (EOM):
Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm
Imaging System:
DMD DLP Technology
Application:
Textile, Decal, Label, Decoration, Packaging And PCB Etc.
Min Screen Size ( Mm ):
400x250mm/ 15.8x9.8
Laser Type:
UV Laser, Wavelength 405±5nm
File Format:
1_bit Tiff Etc.
Exposure Time:
120-240s/㎡, #350 Yellow Mesh
Raster:
Up To 133LPI
Emulsion Thickness (EOM):
Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm
Imaging System:
DMD DLP Technology
Application:
Textile, Decal, Label, Decoration, Packaging And PCB Etc.
Min Screen Size ( Mm ):
400x250mm/ 15.8x9.8
Laser Type:
UV Laser, Wavelength 405±5nm
File Format:
1_bit Tiff Etc.
Exposure Time:
120-240s/㎡, #350 Yellow Mesh
Product Description

Decoration CTS Computer To Screen Imaging System DMD DLP Technology

Product Description:

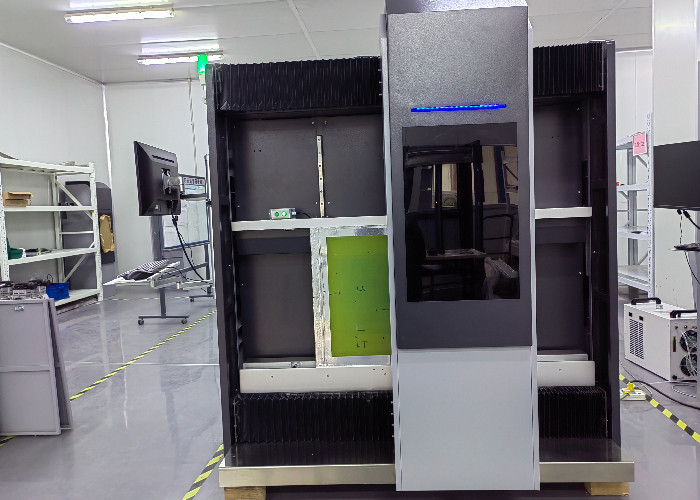

CTS Computer To Screen is a powerful and efficient direct-to-screen imaging system that produces high-quality results. It features a net weight of 1450KG and a screen frame thickness of 20-50mm, with bespoke service available. It is driven by DMD DLP technology and a dynamic focusing system. The raster can reach up to 133LPI, making it ideal for high-resolution imaging. CTS Computer To Screen is a reliable and cost-effective solution for producing superior quality images with sharp details.



Features:

  • Product Name: CTS Computer To Screen
  • Equipment size (mm): 2000x1157.5x2247mm/ 78.7x45.6x88.5
  • Screen frame thickness: 20-50mm (bespoke Service Is Available)
  • Focus system: Dynamic Focusing
  • Laser power: 20W/25W(Optional)
  • Equipment net weight: 1450KG
  • UV laser: Yes
  • Computer To Screen: Yes
  • Computer To Screen Equipment: Yes


Technical Parameters:

Parameters Specifications
Conditions Yellow Light Room With Cleanliness, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation)
Max exposure size (mm) 1100(Height)x1200(length)
Equipment size (mm) 2000x1157.5x2247mm/ 78.7x45.6x88.5
File format 1_bit Tiff Etc.
Screen frame thickness 20-50mm (bespoke Service Is Available)
Power Single Phase 110V/ 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa
Equipment net weight 1450KG
Imaging System DMD DLP Technology
Resolution 1270dpi/2540dpi(Optional)
Max screen size (mm) 1200(Height)x1300(length)
Keywords DMD technology, direct to-screen imaging system , CTS Computer To Screen


Applications:

CTS Computer To Screen, with brand name GIS and model number CTS1213V, is a direct laser image & exposure machine made in Suzhou, China. It features a dynamic focusing system and a raster up to 133LPI, which enables users to print textile with highest quality. It has a solvent resistant emulsion thickness of 3μm - 150μm and a water resistant emulsion thickness of 3μm - 350μm. The max exposure size of this machine is 1100(Height)x1200(length), and it is equipped with DMD DLP technology for imaging system.

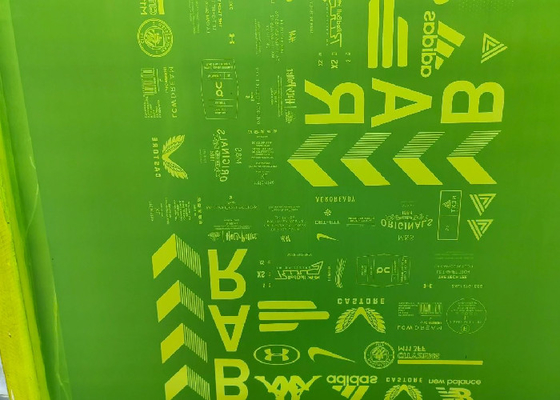

This CTS Computer To Screen is suitable for screen printing textile, since it offers excellent imaging quality with 133 LPI raster and direct laser image & exposure. It is also equipped with high-precision solvent and water resistant emulsion thickness for the best printing results.



Customization:

CTS Computer To Screen Printing For Textile
GIS CTS1213V

GIS CTS1213V is a professional Computer To Screen (CTS) printing system designed specifically for the textile industry. It is manufactured in Suzhou, China, and features a resolution of 1270dpi/2540dpi (Optional). It is suitable for textiles, decals, labels, decorations, packaging, PCBs and more.

The GIS CTS1213V comes with 20W/25W (Optional) laser power and solvent resistant emulsion 3μm-150μm/ water resistant emulsion 3μm-350μm. It supports 133 LPI raster and can expose the entire screen in 120-240s/㎡ (with #350 Yellow Mesh).



Support and Services:

CTS Computer To Screen provides technical support and service for our customers. Our team of highly trained professionals are always available to provide assistance and guidance with any technical issues. We have a dedicated customer service team that can assist you with any inquiries you may have. Our technical support specialists are experienced in troubleshooting and resolving problems quickly and effectively. We also offer ongoing maintenance and repair services, as well as upgrades and customization options to ensure your system is always up to date and running smoothly. We believe in providing the highest quality of service to our customers and are committed to making sure your experience with CTS Computer To Screen is a positive one.



Packing and Shipping:

Packaging and Shipping

CTS Computer To Screen products are packaged with care to ensure safe delivery to the customer. The products are securely packaged using high-grade corrugated cardboard boxes and polyethylene foam cushioning to protect the product. All shipments are tracked to ensure timely delivery.



FAQ:

Q: What is CTS Computer To Screen?
A: CTS Computer To Screen, produced by GIS, is a machine model of CTS1213V. It is developed and manufactured in Suzhou, China, and it is designed to help users quickly and accurately produce color separations.
Q: What are the features of CTS Computer To Screen?
A: CTS Computer To Screen has many features, including high-precision color separation, fast screen-making speed, and support for a variety of computer-generated images.
Q: What applications can CTS Computer To Screen be used for?
A: CTS Computer To Screen can be used for color separations of textiles, printing, and other industries.
Q: What is the output resolution of CTS Computer To Screen?
A: CTS Computer To Screen can output images with a resolution of up to 2880 dpi.
Q: Does CTS Computer To Screen come with software?
A: Yes, CTS Computer To Screen comes with a software package that allows users to edit images and produce color separations.
