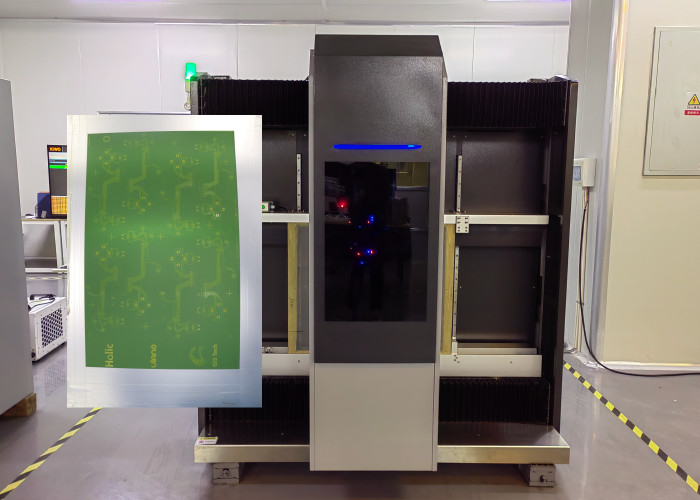

State Of The Art Direct To Screen Imaging System With 2540dpi Resolution

Product Details

Place of Origin: Suzhou, China

Brand Name: GIS

Certification: CE

Model Number: CTS1213V

Payment & Shipping Terms

Get Best Price
Product Details
Highlight:

2540dpi Direct To Screen Imaging System

,

DLP Technology Screen Imaging System

,

CE CTS Computer To Screen

Max Screen Size ( Mm ):
1200(Height)x1300(length)
Resolution:
1270dpi/2540dpi(Optional)
File Format:
1_bit Tiff Etc.
Equipment Size (mm):
2000x1157.5x2247mm/ 78.7x45.6x88.5
Imaging System:
DMD DLP Technology
Max Exposure Size ( Mm ):
1100(Height)x1200(length)
Laser Power:
20W/25W(Optional)
Laser Type:
UV Laser, Wavelength 405±5nm
Max Screen Size ( Mm ):
1200(Height)x1300(length)
Resolution:
1270dpi/2540dpi(Optional)
File Format:
1_bit Tiff Etc.
Equipment Size (mm):
2000x1157.5x2247mm/ 78.7x45.6x88.5
Imaging System:
DMD DLP Technology
Max Exposure Size ( Mm ):
1100(Height)x1200(length)
Laser Power:
20W/25W(Optional)
Laser Type:
UV Laser, Wavelength 405±5nm
Product Description

Product Description:

CTS Computer To Screen is a direct to-screen imaging system, specially designed to produce high quality prints with UV laser. It can help to reduce the time and cost of screen printing production. With a maximum laser power of 20W/25W (optional), its laser imaging provides an unbeatable resolution of up to 1270dpi/ 2540dpi (optional). The equipment size is 2000x1157.5x2247mm/ 78.7x45.6x88.5 and the emulsion thickness can range from solvent resistant emulsion 3μm-150μm to water resistant emulsion 3μm-350μm. CTS Computer To Screen uses the latest DMD DLP Technology to deliver the best result of UV laser imaging. It is the perfect choice for screen printing production.



Features:

  • Product Name: CTS Computer To Screen
  • Application: Textile, Decal, Label, Decoration, Packaging And PCB Etc.
  • Imaging System: DMD DLP Technology
  • Power: Single Phase 110V/ 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa
  • Resolution: 1270dpi/2540dpi(High Resolution, Optional)
  • Emulsion thickness (EOM): Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-350μm
  • Special Feature: UV Laser imaging with 2540 dpi(High Resolution), Single Phase 110V/220V, 4KW


Technical Parameters:

Features Specifications
Imaging System DLP Technology
Screen frame thickness 20-50mm (bespoke Service Is Available)
Laser type UV Laser, Wavelength 405±5nm
File format 1_bit Tiff Etc.
Resolution 1270dpi/2540dpi(Optional)
Max exposure size ( mm ) 1100(Height)x1200(length)
Equipment net weight 1450KG
Min screen size ( mm ) 400x250mm/ 15.8x9.8
Power Single Phase 110V/ 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa
Raster Up To 133LPI


Applications:

GIS CTS1213V is a high-end Computer To Screen (CTS) printing system that uses DMD DLP Technology to deliver 2540 dpi resolution, enabling screen printing of vivid and accurate images on textiles. It is manufactured in Suzhou, China and features up to 133LPI raster with a minimum screen size of 15.8x9.8 inches and a maximum exposure size of 1100(Height)x1200(length). With its fast exposure speed of 120-240s/㎡ and #350 Yellow Mesh, GIS CTS1213V provides remarkable screen printing results for textiles.



Customization:

Are you looking for a reliable and efficient Computer To Screen (CTS) machine for screen printing textile? GIS CTS1213V is the perfect choice for you! This machine, made in Suzhou, China, is capable of handling screen sizes up to 400x250mm/ 15.8x9.8 and is equipped with a dynamic focusing system. It supports 1-bit Tiff and other file formats, and can expose up to 133LPI. To ensure optimal performance, the environment must be a yellow light room with cleanliness, temperature of 22±2°C, and relative humidity of 40-70% (no condensation). GIS CTS1213V is the ideal direct laser image & exposure machine for your screen printing needs!



Support and Services:

CTS Computer To Screen Technical Support and Service

CTS Computer To Screen provides technical support and services to ensure the best performance and service of our products. Our team of experts is here to answer your questions and help you get the most out of our products.

We provide technical support and services for the following areas:

  • Troubleshooting system problems
  • Installation and configuration
  • Software upgrades and updates
  • Hardware maintenance
  • Data backup and restoration

Our technical support team is available 24/7 to answer any questions or provide assistance as needed. If you need help, please contact us at support@cts.com.



Packing and Shipping:

CTS Computer To Screen (CTS) products are packed and shipped in accordance with the following procedures:

  • Each CTS product is individually packed in protective foam, bubble wrap, and cardboard.
  • All CTS products are shipped in a double-walled corrugated box.
  • The box is sealed with packing tape for extra protection during shipping.
  • The box is labeled with the CTS logo and tracking information.
  • The box is then loaded onto a pallet for shipping.


FAQ:

Q:What is CTS Computer To Screen?
A:CTS Computer To Screen (Model Number: CTS1213V) is a product of GIS, a brand based in Suzhou, China. It is a system that allows you to directly output your designs to a silk screen printing machine.
Q:What are the advantages of CTS Computer To Screen?
A:CTS Computer To Screen has a number of advantages. It is fast and efficient, as designs can be quickly output with minimal effort. It is also accurate, ensuring that the designs are printed accurately and consistently.
Q:How does CTS Computer To Screen work?
A:CTS Computer To Screen works by connecting your computer to the silk screen printing machine, allowing you to output your designs directly from your computer. The designs are then printed onto the screen with precision accuracy.
Q:What materials can be printed with CTS Computer To Screen?
A:CTS Computer To Screen is designed to allow you to print on a variety of materials, including fabrics, paper, wood, and plastic.
Q:What is the printing resolution of CTS Computer To Screen?
A:CTS Computer To Screen offers a printing resolution of up to 1,200 dpi, ensuring that your designs are printed with high accuracy and clarity.
