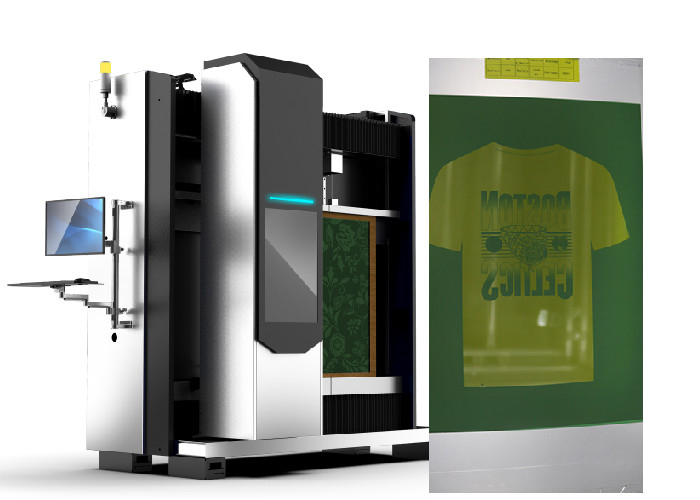

Customizable CTS Machine Laser Power 20W/25W For Label Printing

Customizable CTS Machine Laser Power 20W/25W For Label Printing
Customizable CTS Machine Laser Power 20W/25W For Label Printing

Large Image :  Customizable CTS Machine Laser Power 20W/25W For Label Printing

Product Details:
Place of Origin: Suzhou, China
Brand Name: GIS
Model Number: CTS1213V

Customizable CTS Machine Laser Power 20W/25W For Label Printing

Description
Laser Type: UV Laser, Wavelength 405±5nm Min Screen Size ( Mm ): 400x250mm/ 15.8x9.8
Equipment Size (mm): 2000x1157.5x2247mm/ 78.7x45.6x88.5 Max Exposure Size ( Mm ): 1100(Height)x1200(length)
Max Screen Size ( Mm ): 1200(Height)x1300(length) Conditions: Yellow Light Room With Cleanliness, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation)
Application: Textile, Decal, Label, Decoration, Packaging And PCB Etc. Equipment Net Weight: 1450KG
Highlight:

Customizable CTS Machine

,

25W CTS Machine

,

Label Printing CTS Imaging System

Customizable CTS Laser Power 20W/25W For Label Printing

Product Description:



Features:

  • Product Name: CTS Computer To Screen
  • Resolution: 1270dpi/2540dpi (Optional)
  • Min screen size (mm): 400x250mm/15.8x9.8
  • Raster: Up To 133LPI
  • File format: 1_bit Tiff Etc.
  • Imaging System: DMD DLP Technology
  • CTS - Innovative technology that bridges the gap between computer and screen for efficient and accurate printing.
  • UV laser - Utilizes high-quality UV lasers for superior imaging and precision.
  • High Resolution - Offers high resolution options of 1270dpi or 2540dpi for crisp and clear prints.


Technical Parameters:

Technical Parameter Value
Product Name CTS Computer To Screen
Max Screen Size (mm) 1200 (Height) x 1300 (Length)
Application Textile, Decal, Label, Decoration, Packaging and PCB etc.
Laser Power 20W/25W (Optional)
Focus System Dynamic Focusing
Min Screen Size (mm) 400 x 250 / 15.8 x 9.8
Conditions Yellow Light Room with Cleanliness, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation)
Raster Up to 133LPI
Equipment Net Weight 1450KG
Exposure Time 120-240s/㎡, #350 Yellow Mesh
Screen Frame Thickness 20-50mm (bespoke service is available)
Key Features High Resolution, UV Laser, Computer To Screen


Applications:

CTS Computer To Screen
The Perfect Solution for Precise Screen Printing
  • Brand Name: GIS
  • Model Number: CTS1213V
  • Place of Origin: Suzhou, China
  • Laser type: UV Laser, Wavelength 405±5nm
  • Raster: Up To 133LPI
  • Imaging System: DMD DLP Technology
  • Max exposure size (mm): 1100(Height)x1200(length)
  • Min screen size (mm): 400x250mm/15.8x9.8

CTS Computer To Screen is a revolutionary product that combines advanced technology and precise engineering to provide the perfect solution for screen printing. Produced by GIS, a leading manufacturer of printing equipment based in Suzhou, China, this product is designed to meet the specific demands of professional screen printers.

With a UV Laser that operates at a Wavelength of 405±5nm , the CTS Computer To Screen ensures high quality and accurate imaging. It uses DMD DLP Technology to provide a 2540 dpi resolution, making it ideal for intricate designs and fine details. The Up To 133LPI Raster allows for smooth and precise dot formation, resulting in sharp and clear prints.

The CTS Computer To Screen has a Max Exposure Size of 1100mm in Height and 1200mm in Length , providing enough space for large format printing. It also has a Min Screen Size of 400mm in Width and 250mm in Height , making it suitable for smaller prints as well. This versatility makes it a valuable asset for any screen printing business.

Whether you are printing on t-shirts, bags, or any other fabric, the CTS Computer To Screen from GIS is the perfect choice. Its precision and efficiency will save you time and money, while providing consistent and high-quality results. Don't settle for less, choose the best with CTS Computer To Screen.



Customization:

GIS CTS1213V Computer To Screen

Brand Name: GIS

Model Number: CTS1213V

Place of Origin: Suzhou, China

Focus System: Dynamic Focusing

Max Screen Size: 1200(Height)x1300(Length) mm

Laser Power: 20W/25W (Optional)

File Format: 1_bit Tiff Etc.

Imaging System: DMD DLP Technology

High Resolution: Our CTS1213V Computer To Screen product boasts high resolution capabilities, allowing for clear and precise imaging on screens.

UV Laser: With UV laser technology, our CTS1213V can create high quality and long-lasting images on screens.

Computer To Screen: Our CTS1213V is specifically designed to provide efficient and accurate computer to screen imaging, streamlining the production process.

Customized Service: At GIS, we understand that every customer has unique needs. That's why we offer customized services for our CTS1213V product, ensuring it meets your specific requirements.



Packing and Shipping:

Packaging and Shipping of CTS Computer To Screen

CTS Computer To Screen is carefully packaged and shipped to ensure its safe delivery to our customers. The packaging process includes the following steps:

  • The product is first placed in a protective plastic bag to prevent any scratches or damage during transit.
  • It is then placed in a sturdy cardboard box, with ample cushioning material such as bubble wrap or foam inserts.
  • The box is sealed securely with tape and labeled with the product name and shipping address.
  • For international shipments, the necessary customs forms and documents are also included to facilitate smooth customs clearance.

We offer various shipping options to our customers, including standard and expedited shipping. Our shipping partners are carefully selected to ensure timely and reliable delivery of our products.

Upon shipment, customers will receive a tracking number to monitor the progress of their delivery. In case of any issues or delays, our customer support team is always available to assist and provide updates.

We take great care in packaging and shipping CTS Computer To Screen to guarantee its safe arrival and satisfaction of our customers. Thank you for choosing our product.



FAQ:

  • Q: What is the brand name of this product?
    A: The brand name of this product is GIS.
  • Q: What is the model number of this product?
    A: The model number of this product is CTS1213V.
  • Q: Where is this product manufactured?
    A: This product is manufactured in Suzhou, China.
  • Q: Is this product compatible with all computer screens?
    A: Yes, this product is compatible with most computer screens.
  • Q: Does this product come with a warranty?
    A: Yes, this product comes with a one year warranty from the date of purchase.
