| Brand Name: | GIS |
| Model Number: | CTS300C |

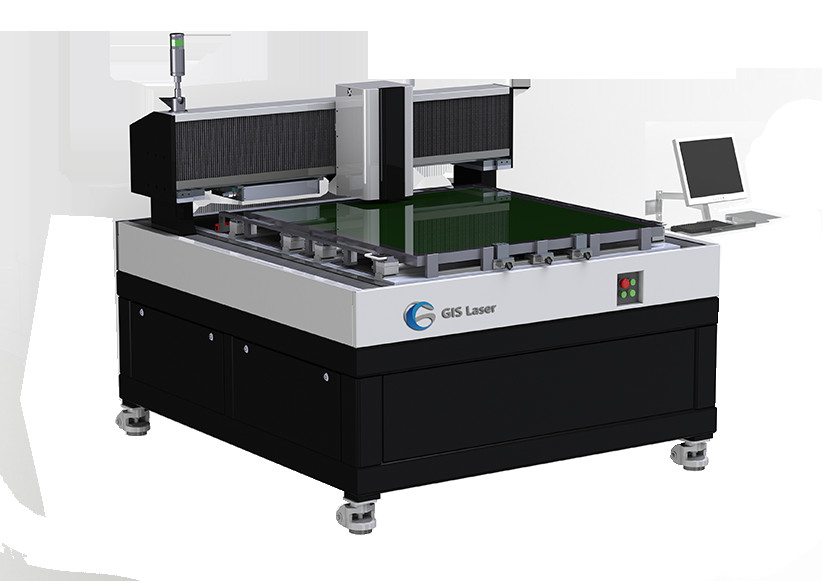

In the relentless pursuit of efficiency and excellence within the screen printing sector, GIS Laser stands at the forefront with its innovative CTS300C Laser Direct Imaging System. This system seamlessly bridges the gap between tradition and the future, fully compatible with mainstream data file formats such as 1_bit tiff and gerber, transforming them into images through precise laser projection for exposure and imaging.
The CTS300C boasts a wide range of capabilities, effortlessly handling large frames up to 1200x1300mm and small frames as small as 400x400mm. With a maximum exposure range of 1100x1250mm and compatibility with frame thicknesses ranging from 25 to 40mm, it caters to the diverse needs of various screen printing industries. From textiles, decals, packaging, and PCBs to automotive glass, home appliance glass, electronic glass, and decorative applications, the CTS300C excels in adaptability and flexibility.
| Raster | Up To 133 Line |
| Laser Power | 20W/25W/30W(Optional) |
| Emulsion Thickness | 3-500μm |
| Focus System | Auto Focusing |
| Screen Frame Thickness | 25-45 Mm (bespoke Service Is Available) |
| Print Resolution | 2540Dpi |
| Max Exposure Size | 1100*1300mm |
| Laser Type | UV Laser Wavelength 405±5nm |
| Model | Computer To Screen |
| Application | Textile |
At GIS Laser, we understand that details matter. The CTS300C excels in its precision, offering a wide range of photosensitive film thicknesses and exposure times. Whether it's solvent-based or water-based photosensitive glue, the system ensures precise image rendering. With an image resolution of up to 2540dpi (optional) and a maximum screen ruling of 133LPI, intricate patterns and text are rendered with stunning clarity.
Powered by UVLD lasers with a wavelength of 405±5nm, the CTS300C offers laser power options of 20W, 25W, or 30W, ensuring precise and accurate exposure every time. Its automatic focusing function and seamless file format support streamline the operation process, enhancing productivity.
Operating in a yellow light room with a cleanliness level of 100,000, the CTS300C thrives in an environment with optimal temperature (22±2°C) and humidity (40-70%, non-condensing), ensuring long-term stability and reliability.
GIS Laser's CTS300C Laser Direct Imaging System marks a significant milestone in the screen printing industry's journey towards intelligence and efficiency. Driven by technological innovation, we strive to provide our clients with exceptional, convenient, and highly efficient plate-making solutions. Choose GIS Laser and embark on a new chapter in your screen printing endeavors!
The CTS Computer To Screen product offers a comprehensive technical support and services package to ensure optimal performance and customer satisfaction:
Our team of experienced technicians and engineers are dedicated to providing timely and effective solutions to any issues that may arise. We are committed to ensuring that our customers get the most out of their investment in our product.
