133LPI CTS Computer To Screen Exposing Machine Resolution 12700dpi 2200*3200mm

VERTICAL CTS Computer To Screen Exposing Machine Resolution 12700dpi 2200*3200mmVERTICAL CTS Computer To Screen Exposing Machine Resolution 12700dpi 1200*1300mm

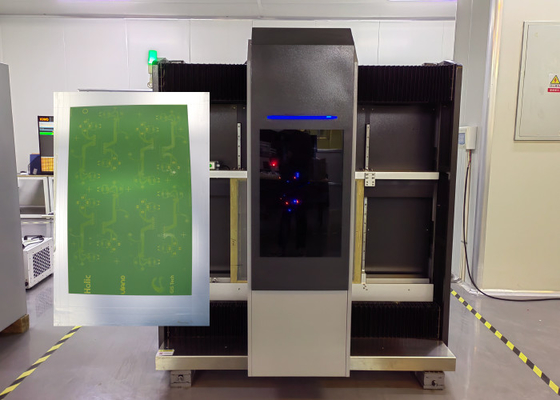

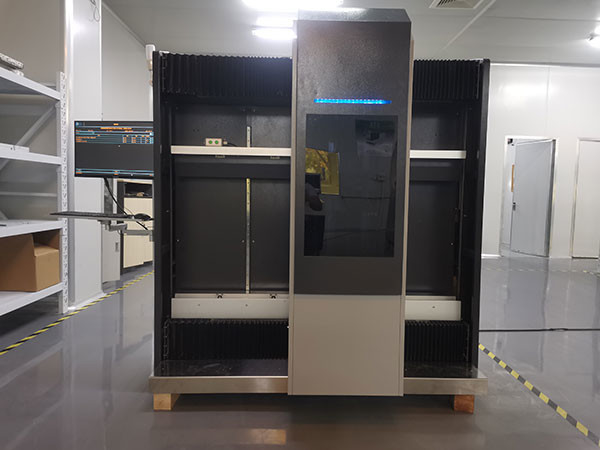

CTS2232V

The specification table for Model CTS2232V lists the detailed parameters and features of the equipment. In the "Application" section, it is stated that the device is suitable for Textile, Decal, Label, Decoration, Packaging, PCB, and other related applications.

The maximum screen size is 220x320mm (8.66x12.54 inches), while the minimum screen size is 50x50mm (1.97x1.97 inches). The maximum exposure size is 210x310mm (8.27x12.20 inches). The screen frame thickness ranges from 25 to 50mm, and a bespoke service is available for custom thicknesses.

The Imaging System utilizes DMD DLP Technology. The emulsion thickness (EOM) for solvent-resistant emulsion is 3μm to 15μm, and for water-resistant emulsion, it is 3μm to 300μm (note: the text information mentions 500μm, but the table specifies 300μm, so we prioritize the table value here).

The exposure time is between 120 and 240 microseconds per raster line, using a #350 yellow mesh. The resolution options include 1270dpi, 2540dpi, and 1270dpi (vector), with the vector option being selectable.

The Raster capability goes up to 133 lines per inch (LPI). The Focus system is Dynamic Focusing. The supported file formats include 1-bit Tiff, Gerber, and PDF vector files, among others.

The Laser type is a UV laser with a wavelength of 405±5nm. The laser power options are 20W, 25W, and 30W. The equipment size is 458x1570 mm (18.03x61.81 inches) in dimensions, but note that the height dimension in the text information (3500mm or 137.80 inches) seems inconsistent with the table and may be a typo; we prioritize the table value here for the width and depth.

The equipment net weight is 450kg. The operating conditions include a yellow light room with cleanliness, a temperature of 22±2°C, and a relative humidity of 40% to 70% (no condensation). The power requirements are Single phase 110V/220V, 50/60Hz, with a power consumption of 4kW. Additionally, compressor air at 0.5MPa is required.

Please note that in some instances, there were discrepancies between the table and the text information provided; in such cases, the table values were prioritized for accuracy.

                                                                                                       *Specifications subject to change without notice

CTS Advantages

High Precision:

Resolutions 1270dpi or 2540dpi, with raster 133lpi/dpi (halftones printing)

High Efficiency:

3 minutes to finish the exposure on screen size 1000mm*1000mm. Stencil making efficieny has been greatly improved due to a lot of time is saved by the accurate exposure alignment and lobor reduction.

Low Cost:

Elimination of film positives. Litho film are becoming increasingly expensive and the number of suppliers on the maket is rapidly decreasing. 1 procedure of CTS digital screen making to replace 5 procedures of from the conventional process

High equipment quality:

The combination of GIS industrial-grade 405-nanometer coupled laser and our optical module is the only product on the market that can reach 50% laser usage, which can greatly save customers' use costs. Moreover, unlike expensive metal halide bulbs that need to be replaced every two years, CTS's laser light source can be used for 10,000 hours. The CTS computer-to-screen imaging and exposure system includes a computer, a monitor, and HQ RIP's proprietary software.
