1270dpi 133LPI CTS Computer To Screen Exposing Machine CTS 2200*3200mm screen

Product Details

Place of Origin: Jiangsu, China

Brand Name: GIS

Certification: CE/ 3C

Model Number: CTS2232V

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiable price

Packaging Details: wooden case packing

Delivery Time: 20 work days

Supply Ability: 30set per month

Get Best Price
Product Details
Highlight:
Name:
Vertical Vertical 1010V
Application:
Textile, Decal, Graphic, Auto, Packaging, PCB, Label, Decoration, Etc.
Resolution:
1270dpi
Max Screen:
900x900mm/ 35.43x35.43"
Raster:
133LPI
Equipment Size:
1750x1080x1970mm 68.9x42.5x77.2"
Emulsion Thickness:
3-500μm
Laser Type:
UV Laser Wavelength 405±5nm
Max Exposure Size:
1000x1000mm/ 39.37 X 39.37"
Imaging System:
DMD DLP Technology
Emulsion Thickness (EOM):
Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-.350μm
Focus System:
Automatic Focusing
File Format:
1_bit Tiff, Gerber, PDF Vector Etc.
Laser Power:
20W/25W/30W(option)
Conditions:
Yellow Light Room With Cleanliness Class 10000, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation)
Power:
Single Phase 220v, 50/60HZ, 4KW, Gas 1L/min
Automatic Intelligent Expansion And Shrinkage Function:
Yes
Name:
Vertical Vertical 1010V
Application:
Textile, Decal, Graphic, Auto, Packaging, PCB, Label, Decoration, Etc.
Resolution:
1270dpi
Max Screen:
900x900mm/ 35.43x35.43"
Raster:
133LPI
Equipment Size:
1750x1080x1970mm 68.9x42.5x77.2"
Emulsion Thickness:
3-500μm
Laser Type:
UV Laser Wavelength 405±5nm
Max Exposure Size:
1000x1000mm/ 39.37 X 39.37"
Imaging System:
DMD DLP Technology
Emulsion Thickness (EOM):
Solvent Resistant Emulsion 3μm-150μm, Water Resistant Emulsion 3μm-.350μm
Focus System:
Automatic Focusing
File Format:
1_bit Tiff, Gerber, PDF Vector Etc.
Laser Power:
20W/25W/30W(option)
Conditions:
Yellow Light Room With Cleanliness Class 10000, Temperature 22±2°C, 40-70% Relative Humidity (No Condensation)
Power:
Single Phase 220v, 50/60HZ, 4KW, Gas 1L/min
Automatic Intelligent Expansion And Shrinkage Function:
Yes
Product Description

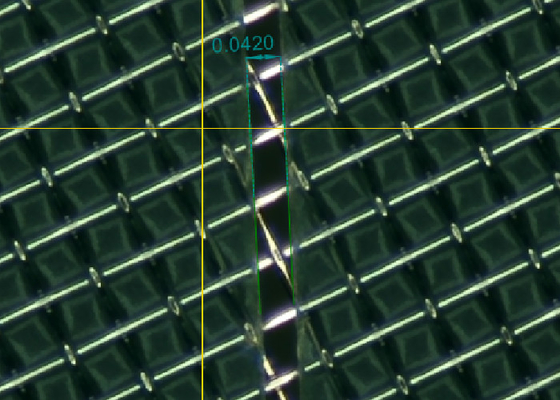

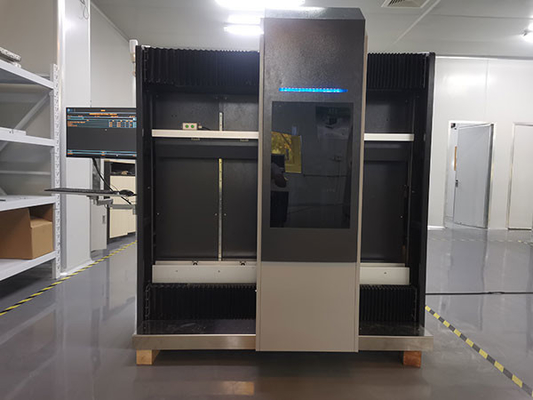

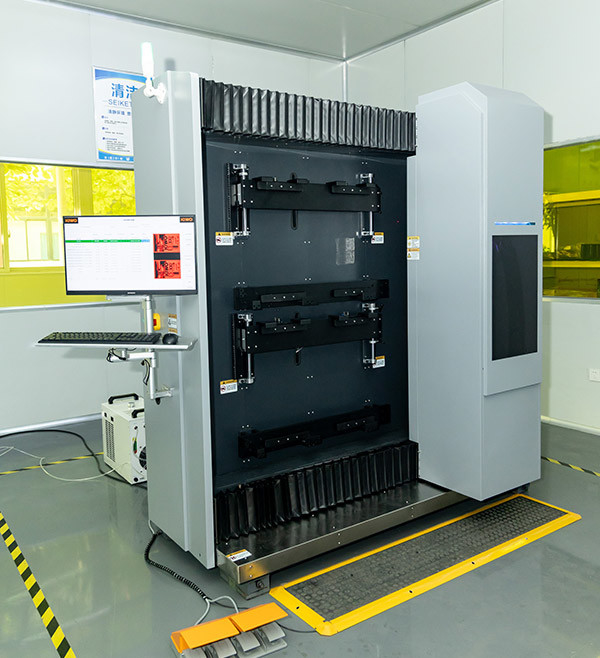

CTS1010V Vertical CTS Computer-to-Screen Exposure Machine



Leading the new era of screen-making technology, the CTS1010V Vertical CTS Computer-to-Screen Exposure Machine defines industry standards with its exceptional performance. Designed specifically to meet the needs of textiles, decals, labels, decoration, packaging, PCB, and more, this high-precision device brings unparalleled detail to your creative works, adding infinite possibilities.

The CTS1010V offers two specifications for your choice:

Oversized Version: With a maximum screen size of 2200*3200mm, it's perfect for large patterns and complex designs.
Standard Version: Featuring a maximum screen size of 1200*1300mm, its compact design flexibly adapts to various working environments.
Both versions boast an astonishing resolution of 12700dpi, ensuring every detail is meticulously rendered, bringing unprecedented clarity and precision to your works.

Utilizing advanced DMD DLP imaging technology, the CTS1010V effortlessly handles a range of thicknesses for both solvent-based and water-based emulsions, from 3μm to 15μm (solvent-based) and 3μm to 300μm (water-based), catering to diverse production requirements. The dynamic focusing system ensures consistent image quality across the entire exposure area, while a raster capability of up to 133 lines per inch (LPI) makes fine lines and details even more distinct.

In terms of efficiency, the CTS1010V offers an exposure time of just 120 to 240 microseconds per raster line, using a #350 yellow mesh, with resolution options including 1270dpi, 2540dpi, and an optional 1270dpi (vector), providing flexibility to suit your creative needs. It supports a variety of file formats, including 1-bit Tiff, Gerber, and PDF vector files, making the transition from design to production smoother.

Equipped with a high-performance UV laser with a wavelength of 405±5nm, the CTS1010V offers three laser power options: 20W, 25W, and 30W, ensuring efficient and stable exposure results. With compact dimensions (458*1570mm, please refer to the table for height information to avoid inconsistencies in the text), and a net weight of 450kg, it's easy to install and maintain.

For optimal operation, the CTS1010V is recommended for use in a yellow light room, kept clean, with a room temperature controlled at 22±2°C and a relative humidity of 40% to 70% (no condensation). Power requirements are single-phase 110V/220V, 50/60Hz, with a power consumption of 4kW, and compressed air at 0.5MPa is required.

The CTS1010V, with precision, efficiency, and flexibility at its core, helps you open a new chapter in screen-making technology. Experience it now and let your creativity extend infinitely!





  Specification / Model

  CTS1213V

  Max screen size ( mm )

  1200x1300

  Min screen size ( mm )

  600x600

  Max exposure size ( mm )

  1100x1200

  Screen frame thickness

  (bespoke service is available)

  25-45mm

  Imaging System

  DMD DLP Technology

  Emulsion thickness (EOM)

  Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    350μm

  Exposure time

  120-240s/ ㎡, #350 yellow mesh

  Resolution

  1270/2540dpi (Optional)

  Raster

  133LPI

  Focus system

  Fixed focusing

  File format

  1_bit tiff etc.

  Laser type

  UV laser, wavelength 405±5nm

  Laser power

  20W/25W(Optional)

  Equipment size (mm)

 2150x1450x2285mm

  Equipment net weight

  2600KG

  Conditions

  Yellow light room with cleanliness Class 10000, temperature 22±2°C,

  40-70% relative humidity (No condensation)

  Power

  Single phase 220v, 50/60HZ, 4KW, gas 1L/min

                                                                                                       *Specifications subject to change without notice





CTS Advantages

High Precision:

Resolutions 1270dpi or 2540dpi, with raster 133lpi/dpi (halftones printing)



High Efficiency:

3 minutes to finish the exposure on screen size 1000mm*1000mm. Stencil making efficieny has been greatly improved due to a lot of time is saved by the accurate exposure alignment and lobor reduction.



Low Cost:

Elimination of film positives. Litho film are becoming increasingly expensive and the number of suppliers on the maket is rapidly decreasing. 1 procedure of CTS digital screen making to replace 5 procedures of from the conventional process



High equipment quality:

The combination of GIS industrial-grade 405-nanometer coupled laser and our optical module is the only product on the market that can reach 50% laser usage, which can greatly save customers' use costs. Moreover, unlike expensive metal halide bulbs that need to be replaced every two years, CTS's laser light source can be used for 10,000 hours. The CTS computer-to-screen imaging and exposure system includes a computer, a monitor, and HQ RIP's proprietary software.
