CTS1010V Vertical CTS Computer-to-Screen Exposure Machine

CTS1010V Vertical CTS Computer-to-Screen Exposure Machine

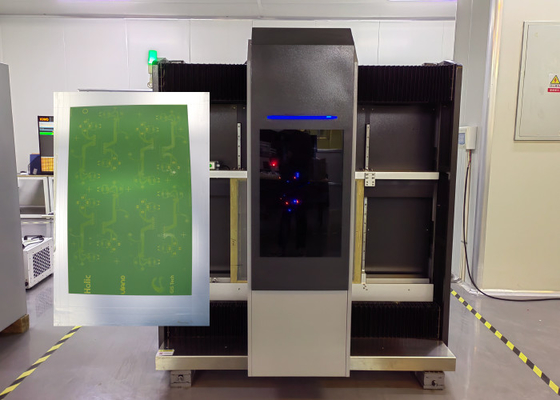

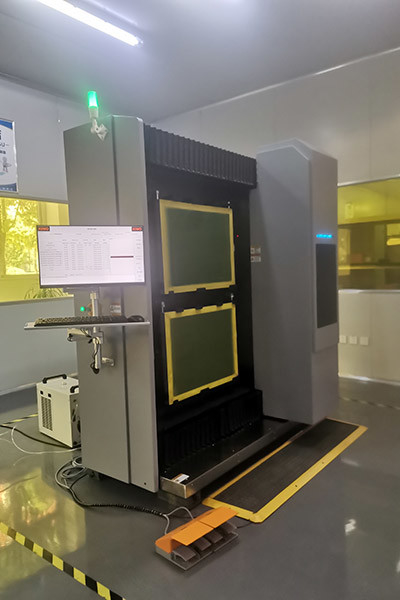

The CTS1010V Vertical CTS Computer-to-Screen Exposure Machine is at the forefront of screen-making technology, setting new industry standards with its outstanding performance. Tailored for applications in textiles, decals, labels, decoration, packaging, PCB, and more, this high-precision machine delivers exceptional detail, unlocking endless creative possibilities.

The CTS1010V is available in two specifications:

Oversized Version: With a maximum screen size of 2200 x 3200 mm, this version is ideal for large patterns and intricate designs.
Standard Version: Featuring a maximum screen size of 1200 x 1300 mm, its compact design is versatile enough to fit various working environments.
Both versions achieve an impressive resolution of 12,700 dpi, ensuring meticulous detail and unprecedented clarity in your projects.

Employing advanced DMD DLP imaging technology, the CTS1010V can accommodate a range of thicknesses for both solvent-based and water-based emulsions, from 3 μm to 15 μm (solvent-based) and 3 μm to 300 μm (water-based), making it suitable for diverse production needs. Its dynamic focusing system guarantees consistent image quality across the entire exposure area, while a raster capability of up to 133 lines per inch (LPI) enhances the visibility of fine lines and details.

In terms of efficiency, the CTS1010V boasts an exposure time of only 120 to 240 microseconds per raster line when using a #350 yellow mesh. It offers resolution options of 1270 dpi, 2540 dpi, and an optional 1270 dpi (vector), providing the flexibility to meet your creative requirements. The machine supports various file formats, including 1-bit TIFF, Gerber, and PDF vector files, facilitating a smoother transition from design to production.

Equipped with a high-performance UV laser operating at a wavelength of 405 ± 5 nm, the CTS1010V provides three laser power options: 20W, 25W, and 30W, ensuring efficient and stable exposure results. Its compact dimensions (458 x 1570 mm; please refer to the accompanying table for height details) and net weight of 450 kg make installation and maintenance straightforward.

For optimal performance, it is recommended to operate the CTS1010V in a clean yellow light room, with a controlled room temperature of 22 ± 2°C and a relative humidity of 40% to 70% (no condensation). Power requirements include single-phase 110V/220V, 50/60Hz, with a power consumption of 4 kW, and compressed air at 0.5 MPa.

With precision, efficiency, and flexibility at its core, the CTS1010V is poised to revolutionize your screen-making process. Experience it today and let your creativity flourish!

                                                                                                       *Specifications subject to change without notice

CTS Advantages

High Precision:

Resolutions 1270dpi or 2540dpi, with raster 133lpi/dpi (halftones printing)

High Efficiency:

3 minutes to finish the exposure on screen size 1000mm*1000mm. Stencil making efficieny has been greatly improved due to a lot of time is saved by the accurate exposure alignment and lobor reduction.

Low Cost:

Elimination of film positives. Litho film are becoming increasingly expensive and the number of suppliers on the maket is rapidly decreasing. 1 procedure of CTS digital screen making to replace 5 procedures of from the conventional process

High equipment quality:

The combination of GIS industrial-grade 405-nanometer coupled laser and our optical module is the only product on the market that can reach 50% laser usage, which can greatly save customers' use costs. Moreover, unlike expensive metal halide bulbs that need to be replaced every two years, CTS's laser light source can be used for 10,000 hours. The CTS computer-to-screen imaging and exposure system includes a computer, a monitor, and HQ RIP's proprietary software.

About US

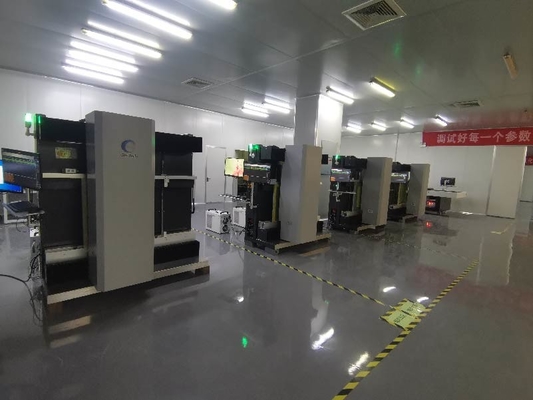

GIS Tech Inc.has established a manufacturing and R&D base in Fengxian County, Xuzhou, covering an area of 20,000 square meters, including 1000 square meters of clean workshops. It has R&D and after-sales centers in Suzhou, covering an area of 2,000 square meters, with a core teams of 30 R&D people, and it’s planned to be expanded to 60 people. The products cover optical, mechanical, electrical systems, software and sports systems. The technical force is strongly supported by a team of experts from Japan and Germany, with a technical team covering high-end talents such as optics, mechanics, electronics, software, etc., as well as complete production facilities and related equipment.
